Запчасти Case IH MAXXUM 140 (35.204.BE[10]) - VAR - 331844, 743741 - 3 MECHANICAL REAR REMOTE CONTROL VALVES ( 1 NON CONFIGURABLE ) WITH PUMP 80 L/MIN FD - DISTRIBUTOR - BREAKDOWN (35) - HYDRAULIC SYSTEMS

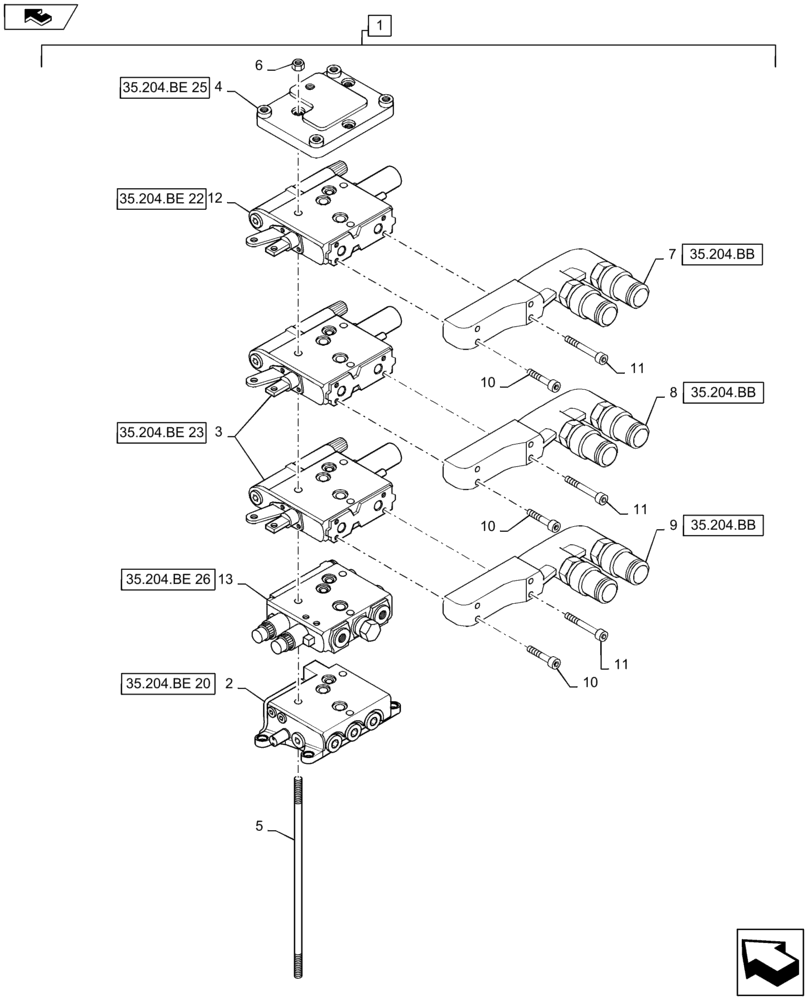

Схема запчастей Case IH MAXXUM 140 - (35.204.BE[10]) - VAR - 331844, 743741 - 3 MECHANICAL REAR REMOTE CONTROL VALVES ( 1 NON CONFIGURABLE ) WITH PUMP 80 L/MIN FD - DISTRIBUTOR - BREAKDOWN (35) - HYDRAULIC SYSTEMS
35.204.bb
7
35.204.be 26
9
11
35.204.be 23
3
13
11
2
12
11
6
10
35.204.be 20
35.204.bb
35.204.be 22
5
35.204.bb
8
4
35.204.be 25
1
10
10
home

Артикул

Название

Примечание

Количество

1

87311383

CONTROL VALVE

Incl 2 - 13

1шт.

2

5192186

DISTRIBUTOR

1шт.

3

87328572

HYD VALVE SECTION

2шт.

3

87328572R

REMAN-HYD VALVE

2шт.

3

87328572C

CORE-VALVE HYD

Return Number

2шт.

4

5192188

BODY

1шт.

5

47123183

STUD,M8

3шт.

6

5195169

NUT,M8

3шт.

7

87381964

QUICK MALE COUPLING

1шт.

8

87381963

QUICK MALE COUPLING

1шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

12

87546169

CONTROL VALVE

1шт.

12

87546169R

REMAN-HYD VALVE

1шт.

12

87546169C

CORE-VALVE HYD

1шт.

13

84175671

VALVE SECTION

Return Number

1шт.

13

84175671R

REMAN-HYD VALVE

1шт.

13

84175671C

CORE-VALVE HYD

Return Number

1шт.

Выбрано товаров: 19
