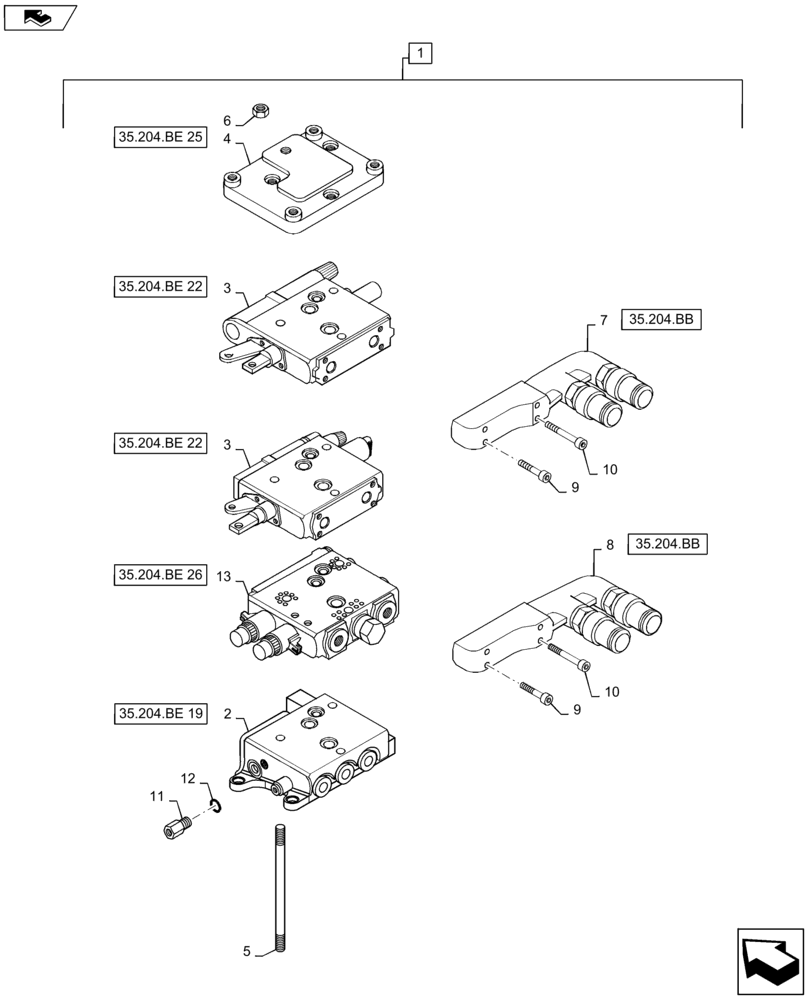

Запчасти Case IH MAXXUM 140 (35.204.BE[08]) - VAR - 331849, 743740 - 2 MECHANICAL REAR REMOTE CONTROL VALVES ( CONFIGURABLE ) WITH PUMP 113 L/MIN CCLS - DISTRIBUTOR - BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

87312721

CONTROL VALVE

Incl 2 - 13

1шт.

2

87730706

CONTROL VALVE

1шт.

2

87730706R

REMAN-HYD VALVE

1шт.

2

87730706C

CORE-VALVE HYD

Return Number

1шт.

3

87328572

HYD VALVE SECTION

2шт.

4

5192188

BODY

1шт.

5

5195168

TIE-ROD,M8

3шт.

6

5195169

NUT,M8

3шт.

7

87381963

QUICK MALE COUPLING

1шт.

8

87381958

QUICK MALE COUPLING

1шт.

9

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

10

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

11

5191704

CHECK VALVE

1шт.

12

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

13

84175671

VALVE SECTION

1шт.
