Запчасти Case IH MAXXUM 140 (35.204.BE[06]) - VAR - 330849, 743740 - 2 MECHANICAL REAR REMOTE CONTROL VALVES (CONFIGURABLE) WITH PUMP 80 L/MIN FD - DISTRIBUTOR - BREAKDOWN (35) - HYDRAULIC SYSTEMS

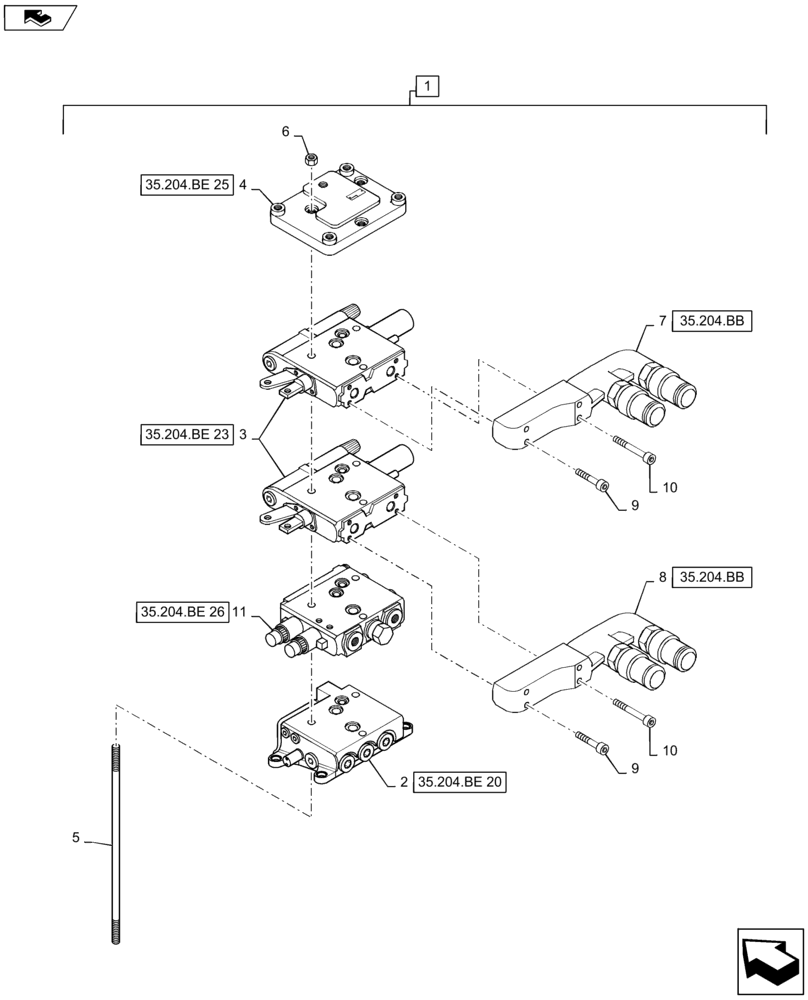

Схема запчастей Case IH MAXXUM 140 - (35.204.BE[06]) - VAR - 330849, 743740 - 2 MECHANICAL REAR REMOTE CONTROL VALVES (CONFIGURABLE) WITH PUMP 80 L/MIN FD - DISTRIBUTOR - BREAKDOWN (35) - HYDRAULIC SYSTEMS
6
5
3
1
35.204.bb
35.204.bb
2
10
4
11
10
9
9
7
35.204.be 20
35.204.be 23
35.204.be 26
35.204.be 25
home
8

Артикул

Название

Примечание

Количество

1

87312720

CONTROL VALVE

Incl 2 - 11

1шт.

2

5192186

DISTRIBUTOR

1шт.

3

87328572

HYD VALVE SECTION

2шт.

4

5192188

BODY

1шт.

5

5195168

TIE-ROD,M8

3шт.

6

5195169

NUT,M8

3шт.

7

87381963

QUICK MALE COUPLING

1шт.

8

87381958

QUICK MALE COUPLING

1шт.

9

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

10

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

11

84175671

VALVE SECTION

1шт.

Выбрано товаров: 11
