Запчасти Case IH MAXXUM 140 (35.160.AB[06]) - VAR - 330926 - TUBES FOR FRONT HPL FROM MECHANICAL REMOTE VALVES (35) - HYDRAULIC SYSTEMS

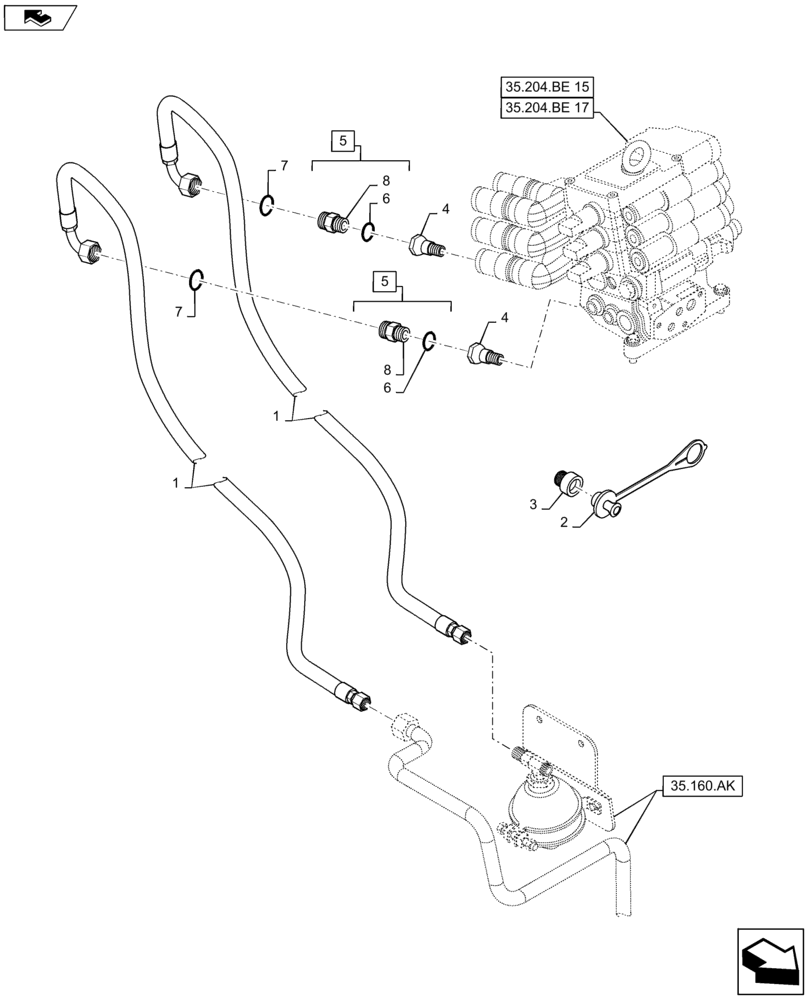

Схема запчастей Case IH MAXXUM 140 - (35.160.AB[06]) - VAR - 330926 - TUBES FOR FRONT HPL FROM MECHANICAL REMOTE VALVES (35) - HYDRAULIC SYSTEMS
35.160.ak
6
2
1
35.204.be 15
4
35.204.be 17
3
8
7
7
5
5
home
8
4
1
6

Артикул

Название

Примечание

Количество

1

47057676

FLEXIBLE HOSE,Hyd, 12mm ID x 2860mm L

Maxxum 110, 120, 130

2шт.

1

47057675

FLEXIBLE HOSE,Hyd, 12mm ID x 3100mm L

Maxxum 115, 125, 140

2шт.

2

5179576

PLUG,24mm, Green

Green

2шт.

3

47127559

COUPLING, QUICK, FEM

2шт.

4

83972881

COUPLING

2шт.

5

5198413

HYD CONNECTOR,1/2" BSPP A13/16"-16"

Incl 6, 8

2шт.

6

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

7

83416185

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

2шт.

Выбрано товаров: 9
