Запчасти Case IH MAXXUM 140 (35.160.AB[02]) - VAR - 331814 - 2 FRONT COUPLERS FOR INTEGRATED FRONT HPL FROM MID MOUNT VALVES - PIPES (35) - HYDRAULIC SYSTEMS

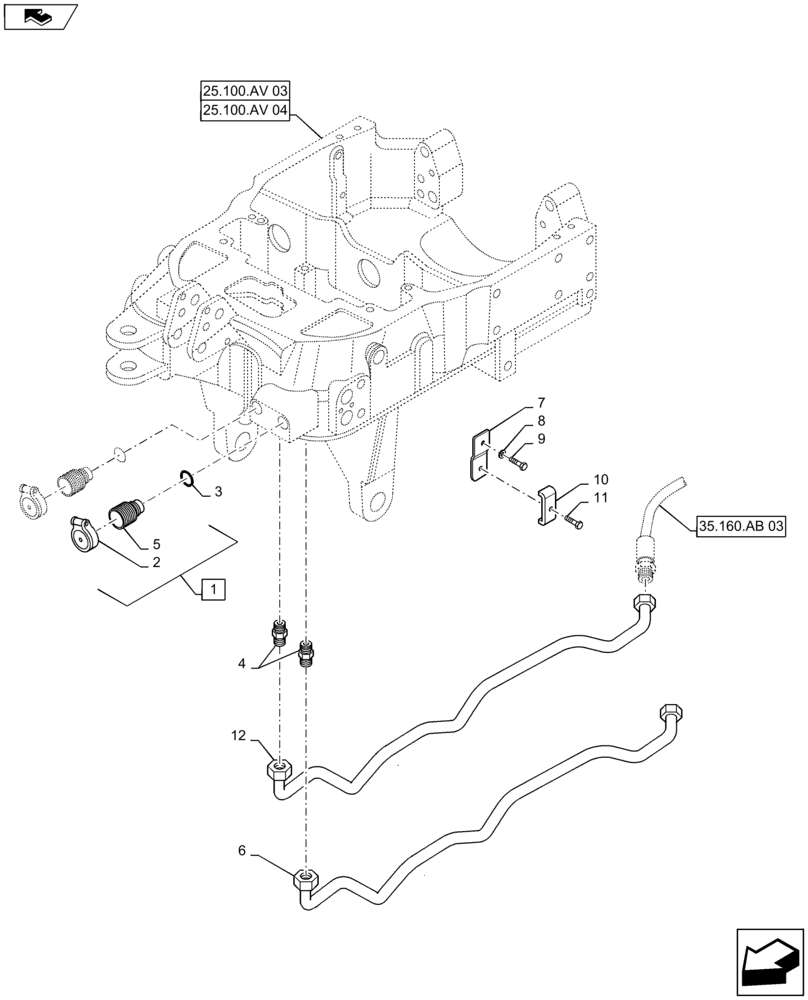

Схема запчастей Case IH MAXXUM 140 - (35.160.AB[02]) - VAR - 331814 - 2 FRONT COUPLERS FOR INTEGRATED FRONT HPL FROM MID MOUNT VALVES - PIPES (35) - HYDRAULIC SYSTEMS
7
25.100.av 04
10
6
1
2
4
9
home
11
25.100.av 03
12
5
8
35.160.ab 03
3

Артикул

Название

Примечание

Количество

1

87301571

QUICK MALE COUPLING,M22 x 1.5

Incl 2, 5

2шт.

2

47056253

CAP,59.5mm L x 46mm D x 19.4mm Thk, Black

2шт.

3

11270860

SEAL,22.2mm ID x 26.9mm OD x 1.5mm Thk

2шт.

4

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

2шт.

5

NSS

NOT SOLD SEPARAT

Coupling, Incl in 1

2шт.

6

87664276

HYD TUBE,16 mm OD

1шт.

7

47057070

CLAMP BRACKET

1шт.

8

14497101

WASHER,M20 x 37 x 3

1шт.

9

11124421

BOLT,Hex, M20 x 40, 8.8

1шт.

10

47057074

CLAMP,48.6mm x 30mm

1шт.

11

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

12

87664275

HYD TUBE,16 mm OD

1шт.

Выбрано товаров: 12
