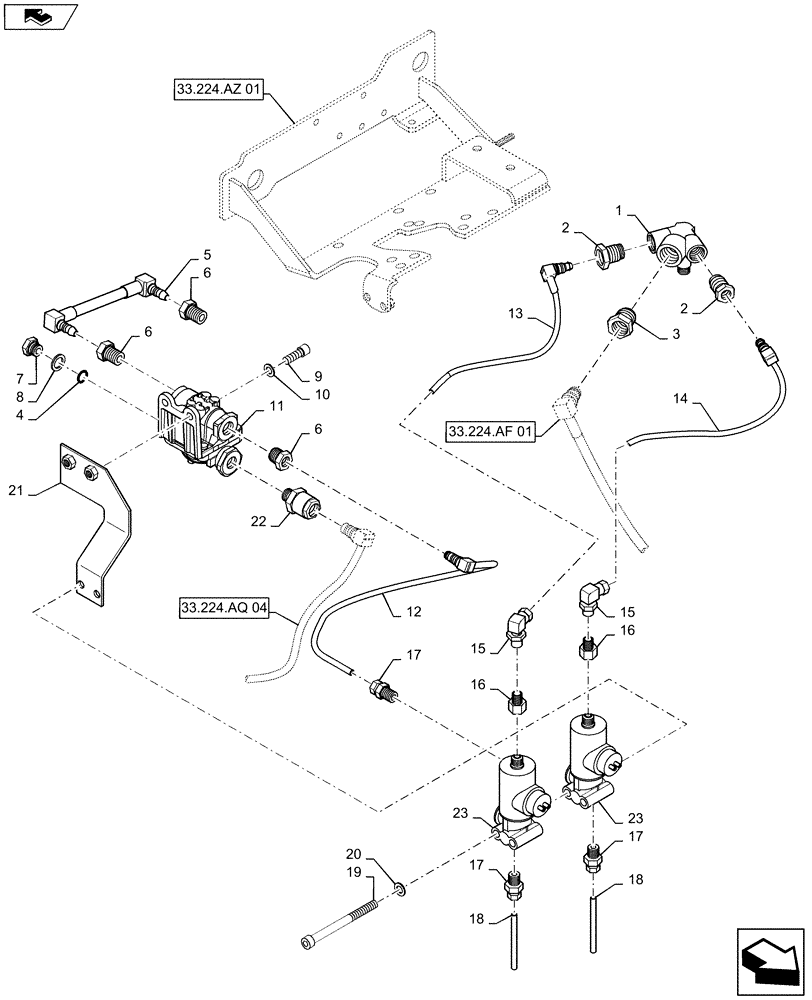

Запчасти Case IH MAXXUM 140 (33.224.BA[02]) - VAR - 332739 - PNEUMATIC TRAILER BRAKE - QUICK RELEASE VALVE, SOLENOID AND PIPES (33) - BRAKES & CONTROLS

1

82019795

FITTING

1шт.

2

82036187

HYD CONNECTOR,M16 x 1.5

2шт.

3

82034157

ADAPTER

1шт.

4

87392491

O-RING,2.5mm Thk x 14mm ID

1шт.

5

84157672

FLEXIBLE HOSE,12.00mm OD x 123.00mm

1шт.

6

87588079

HYD CONNECTOR,M16 x 1.5

3шт.

7

84157695

PLUG,Hex, M16 x 1.5 x 17mm L

1шт.

8

86010343

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

1шт.

9

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

10

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

2шт.

11

84157669

VALVE

1шт.

12

84157675

FLEXIBLE HOSE,436.00 mm

1шт.

13

87677917

TUBE

1шт.

14

87677915

TUBE

1шт.

15

87678122

HYD CONNECTOR,M10 x 1

2шт.

16

87678127

HYD CONNECTOR,M10 x 1, M12 x 1.5

2шт.

17

82006828

ADAPTER

3шт.

18

82019793

HOSE,6.00mm OD x 70.00mm

2шт.

19

14302124

HEX SOC SCREW,M8 x 1.25 x 100mm, Cl 8.8

2шт.

20

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

4шт.

21

84143167

SUPPORT

1шт.

22

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

1шт.

23

84359255

SOLENOID VALVE,1.41A, 12 VDC,

2шт.
