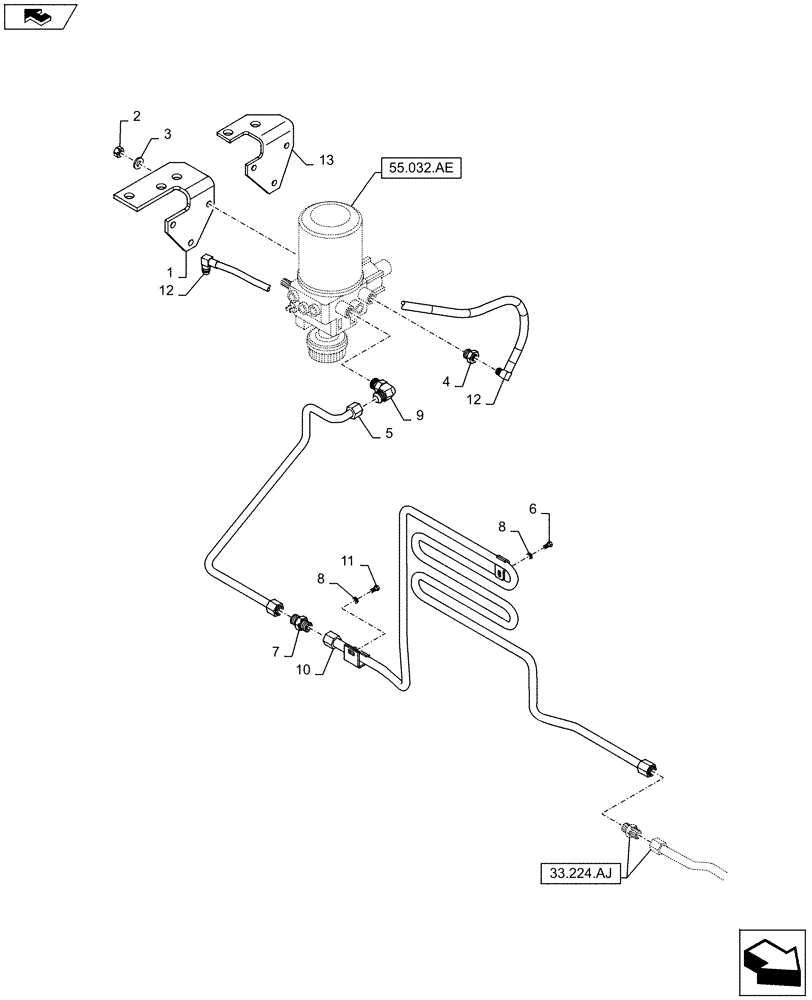

Запчасти Case IH MAXXUM 140 (33.224.AQ[01]) - VAR - 332727, 332737, 332739 - PNEUMATIC TRAILER BRAKE - AIR DRYER PIPES (33) - BRAKES & CONTROLS

1

87326690

BRACKET

, Serial Range: -C7174

1шт.

2

11702911

NUT,M12, Cl 8, ZND

3шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

4

82036156

FITTING,M22 x 1.5 x NG12

1шт.

5

84471141

BRAKE LINE

1шт.

6

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

7

82024503

HYD CONNECTOR,7/8"-14 x 7/8"-14

1шт.

8

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

9

5161351

90 ELBOW,Male, M22 x 1.5, ORB x 7/8"-14, 37 Degree Fl

1шт.

10

84471131

BRAKE LINE

, Serial Range: -C7170

1шт.

10

84569489

PIPE

, Start Serial: D7170

1шт.

11

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

, Serial Range: -C7170

1шт.

11

10902311

BOLT,Hex, M6 x 18mm, Cl 5.8, Full Thd

, Start Serial: D7170

1шт.

12

87573866

TUBE,16mm OD x 930mm L

1шт.

13

84475956

BRACKET

, Start Serial: D7174

1шт.
