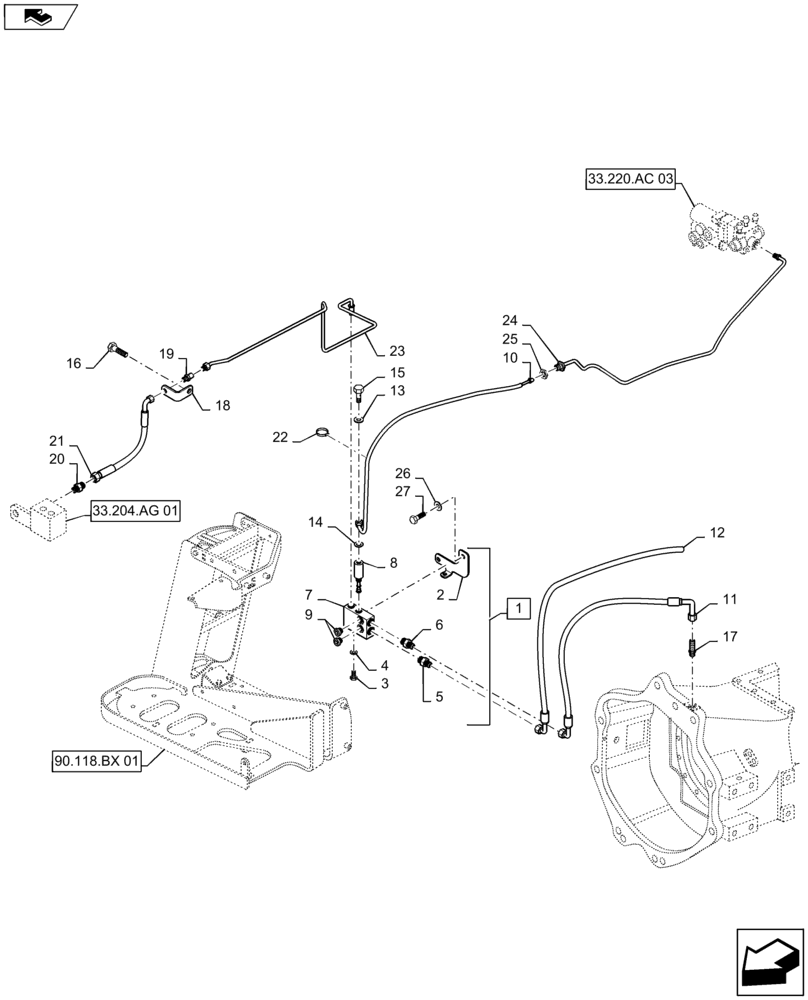

Запчасти Case IH MAXXUM 140 (33.204.AG[02]) - VAR - 330427 - CL.3 SUSPENDED FRONT AXLE - BRAKE PIPES AND VALVE (33) - BRAKES & CONTROLS

1

84481172

BRAKE VALVE

Incl 2 - 9

1шт.

2

84477828

BRACKET

1шт.

3

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

5

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

6

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

7

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

8

84153572

VALVE, PRESSURE CONT

1шт.

9

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

2шт.

10

84477832

HOSE

1шт.

11

84477833

HOSE,6.4mm ID x 910mm L, SAE 100R2

1шт.

12

84477834

HOSE,6.4mm ID x 1150mm L, SAE 100R2

1шт.

13

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

14

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

1шт.

15

82036875

BANJO BOLT

1шт.

16

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

1шт.

17

87530057

FITTING

1шт.

18

47057231

BRACKET

1шт.

19

82016624

ADAPTER

1шт.

20

82015298

HYD CONNECTOR,1/2"-20 - M18 x 1.5

1шт.

21

82036030

HOSE,15.88mm ID x 550mm L, SAE 100R2

1шт.

22

13000590

HOSE CLAMP,25mm - 40mm, Worm Gear

1шт.

23

84481166

BRAKE LINE

Maxxum 110, 120, 130

1шт.

23

84478714

BRAKE LINE

Maxxum 115, 125, 140

1шт.

24

84316706

TUBE

Pilot Front Brake Valve

1шт.

25

10726624

THIN NUT,M18 x 1.5, Cl 04

1шт.

26

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

27

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.
