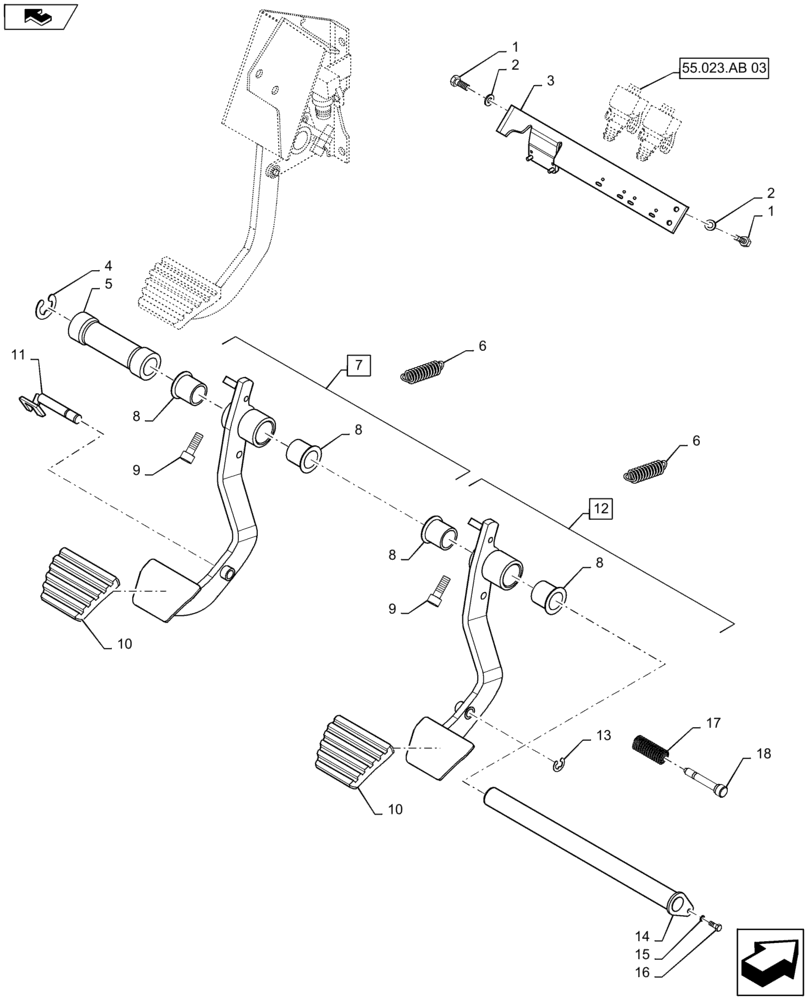

Запчасти Case IH MAXXUM 140 (33.202.BN) - VAR - 330973 + STD - BRAKE PEDALS (33) - BRAKES & CONTROLS

1

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

2

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

3шт.

3

84183613

SUPPORT

1шт.

4

83937363

SNAP RING

1шт.

5

87310426

SPACER,32mm ID x 38mm OD x 134mm L

1шт.

6

5153180

SPRING,21mm OD x 84mm L

2шт.

7

87547097

PEDAL

LH, Incl 8 - 10

1шт.

8

5155548

BUSHING,25mm ID x 31.05mm OD x 32mm L

4шт.

9

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

2шт.

10

82025747

RUBBER PEDAL PAD

2шт.

11

84209162

PIN,11.965mm OD x 70mm L

1шт.

12

87547098

PEDAL

RH, Incl 8 - 10

1шт.

13

11088180

CIRCLIP,M11, Stainless

1шт.

14

82022428

SHAFT,20mm ID x 25mm OD x 348mm L

1шт.

15

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

1шт.

16

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

17

82032745

SPRING

Operators Manual Norwegian, Var. 330973

1шт.

18

82032746

PIN

Operators Manual Norwegian, Var. 330973

1шт.
