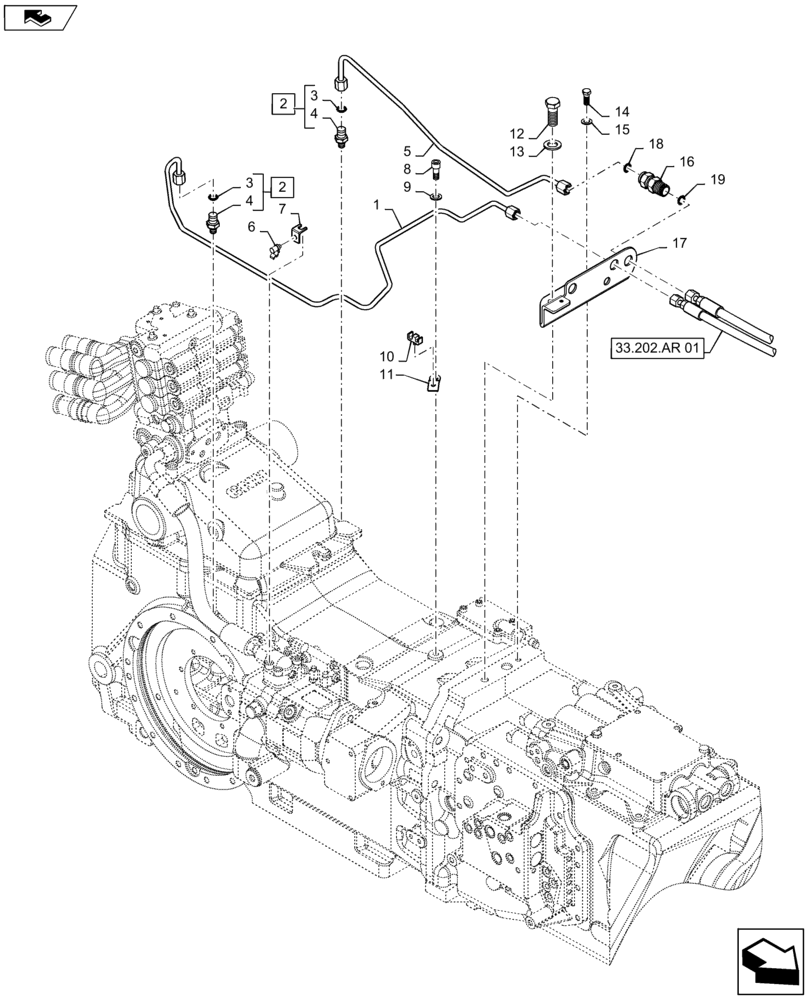

Запчасти Case IH MAXXUM 140 (33.202.AP[02]) - VAR - 331836, 333836, 336835,338835, 743744 + STD - REAR BRAKE PIPES (33) - BRAKES & CONTROLS

1

84421984

TUBE

RH

1шт.

2

47131549

FITTING,M12 x 1.5

Incl 3, 4

2шт.

3

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

2шт.

5

84421978

TUBE

LH

1шт.

6

14571987

CLIP

1шт.

7

84485007

BRACKET

1шт.

8

14420221

HEX SOC SCREW,M10 x 30mm, Cl 8.8

1шт.

9

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

10

14575480

CLIP

1шт.

11

5155804

BRACKET

1шт.

12

15980521

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

13

86639311

WASHER,17.5mm ID x 34mm OD x 3mm Thk

1шт.

14

86637962

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

15

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

16

87711900

HYD CONNECTOR

Incl 18, 19

1шт.

17

84421991

BRACKET

1шт.

18

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

19

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.
