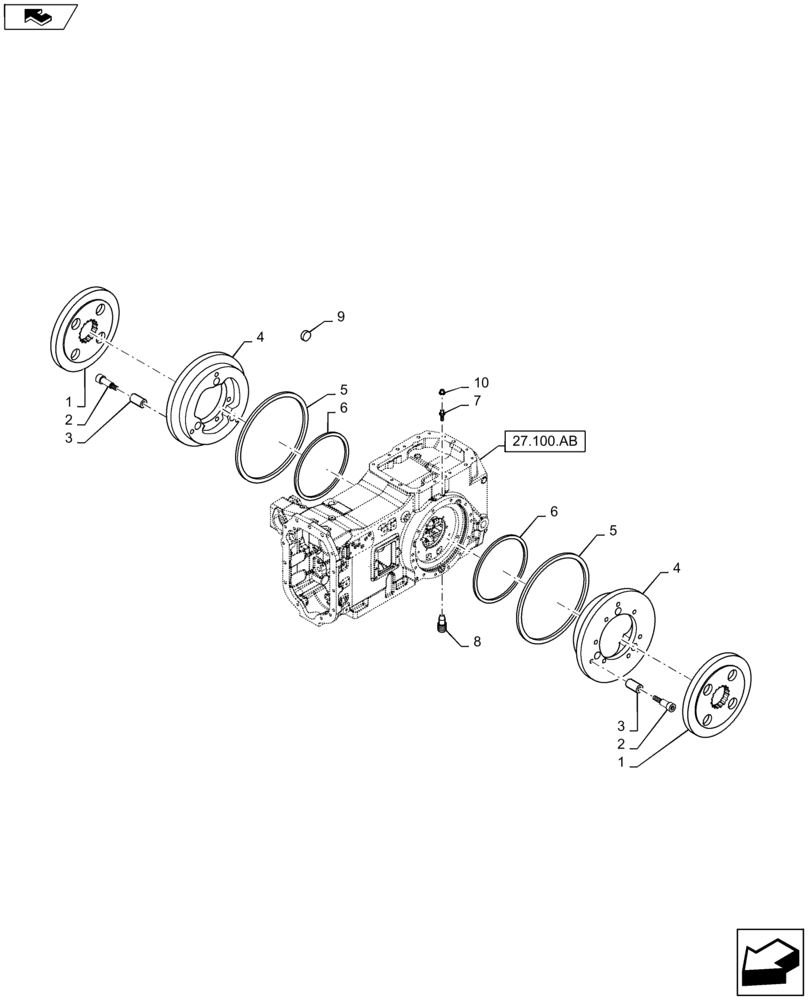

Запчасти Case IH MAXXUM 140 (33.202.AK) - VAR - 333166, 331836, 333836, 336835, 338835, 743744 + STD - REAR AXLE BRAKES (33) - BRAKES & CONTROLS

1

5191497

BRAKE DISC

Standard Equipment

2шт.

1

87516774

BRAKE DISC

Extended Life Brake Discs, VAR 333166

2шт.

2

47132770

SCREW,M10 x 1.25 x 48mm, Cl 10.9

Standard Equipment

6шт.

3

5192390

BUSHING,17mm ID x 24mm OD x 28.98mm L

Standard Equipment

6шт.

4

5191494

PISTON

Standard Equipment

2шт.

4

87354150

PISTON

with 113 L/MIN CCLS for SPS, VAR 331836, 333836, 336835, 338835, 743744

2шт.

5

5165512

SEAL,Square, 3.4mm Thk x 329.8mm ID, 80 Duro

Standard Equipment

2шт.

6

5191498

SEAL,Quad, 3.4mm Thk x 268mm ID, 80 Duro

Standard Equipment

2шт.

7

5155682

BLEED SCREW,Bleeder, M12 x 1.25 x 33mm

Standard Equipment

4шт.

8

5152383

DRAIN PLUG,M12 x 1.25 x 24mm

Standard Equipment

2шт.

9

87574047

PLUG

With Standard Equipment or with Cl. 4 Front Axle, VAR 331145, 331146

2шт.

10

5171793

BOOT

Standard Equipment

2шт.
