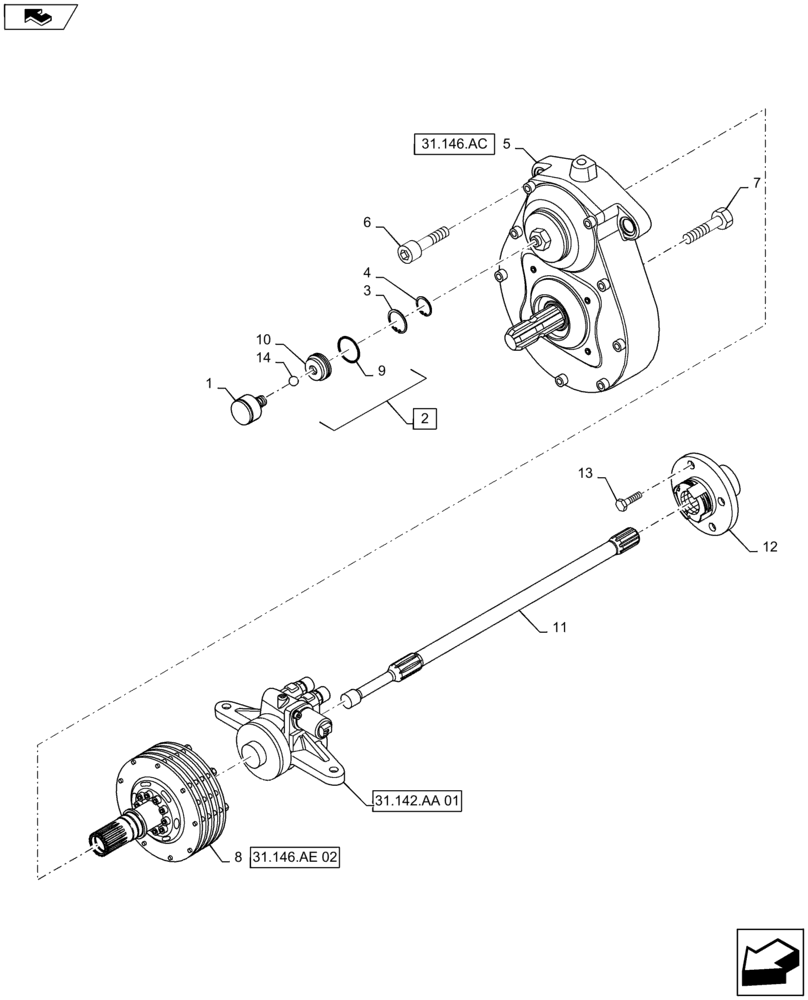

Запчасти Case IH MAXXUM 140 (31.146.AE[01]) - VAR - 333648, 334648, 335648, 332647, 333647, 743700 - INTEGRATED FRONT HPL WITH PTO - PTO AND CLUTCH (31) - IMPLEMENT POWER TAKE OFF

1

47126759

BREATHER,M12 x 1.25

1шт.

2

47128748

PLUG

Incl 9,10,14

1шт.

3

11069276

SNAP RING,M48, Ext

1шт.

4

11059576

SNAP RING,M36, Int

1шт.

5

47127612

FRONT PTO ASSY

1шт.

6

14429534

HEX SOC SCREW,M20 x 60mm, Cl 10.9

2шт.

7

15541121

SCREW,Hex, M12 x 1.25 x 65mm, Cl 8.8

1шт.

8

87315409

PTO CLUTCH

1шт.

9

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

11

87351594

DRIVE SHAFT,644mm L

1шт.

12

47127689

HUB

1шт.

13

15215724

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

4шт.

14

20419380

BALL,12.7mm Dia

1шт.
