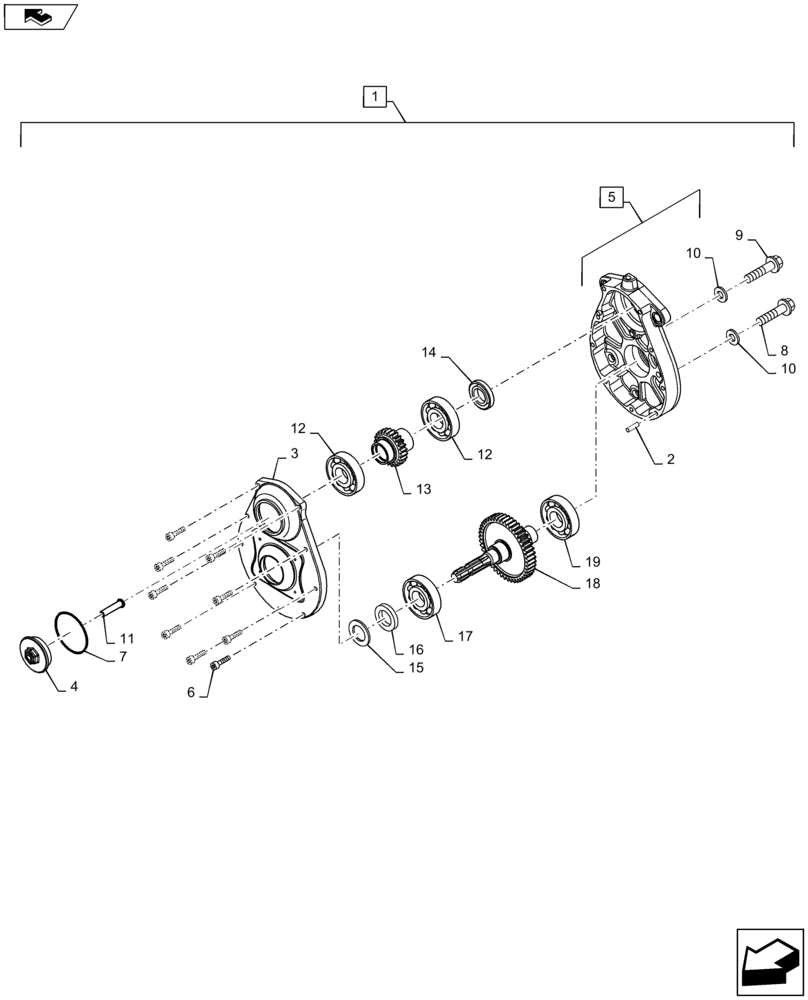

Запчасти Case IH MAXXUM 140 (31.146.AC) - VAR - 333648, 334648, 335648, 743700 - FRONT PTO - PTO BREAKDOWN (31) - IMPLEMENT POWER TAKE OFF

1

47127612

FRONT PTO ASSY

Incl 2 - 19

1шт.

2

10839710

DOWEL,M10 x 15.00mm

2шт.

3

47124397

COVER

1шт.

4

47126758

PLUG,M70 x 2

1шт.

5

5197431

HOUSING

Incl 2

1шт.

6

14307634

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 10.9, Full Thd

9шт.

7

14460480

O-RING,2.612" ID x 2.818" OD x .103"

1шт.

8

5118991

PLUG,M22 x 1.5

1шт.

9

10305111

PLUG,M22 x 1.5 x 21, Cl5.8

1шт.

10

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

11

47126760

TUBE

1шт.

12

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

2шт.

13

5196253

PTO SHAFT

1шт.

14

5119540

SEAL,60mm ID x 85mm OD x 8mm Thk

1шт.

15

4996762

RETAINER,40.2mm ID x 62mm OD x 6mm L

1шт.

16

87350856

SEAL,38.4mm ID x 62mm OD x 10mm Thk

1шт.

17

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

1шт.

18

5196255

GEAR

1шт.

19

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

1шт.
