Запчасти Case IH MAXXUM 140 (31.142.AA[02]) - VAR - 333648, 334648, 335648, 743700 - FRONT POWER TAKE-OFF - CYLINDER - BREAKDOWN (31) - IMPLEMENT POWER TAKE OFF

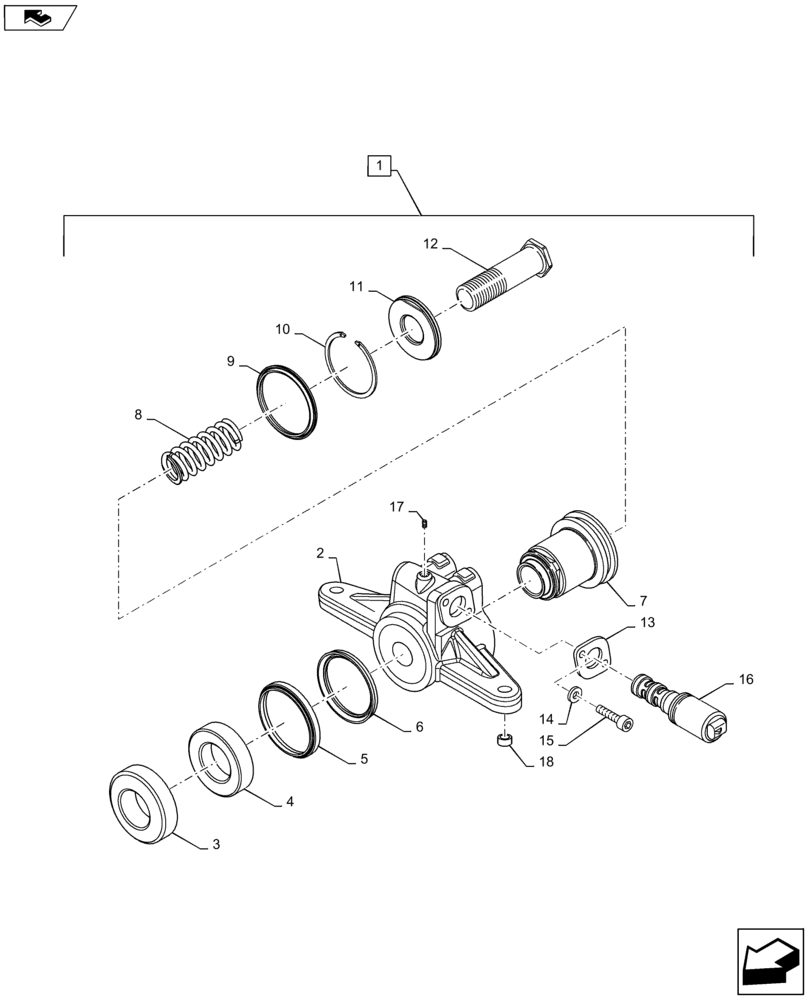

Схема запчастей Case IH MAXXUM 140 - (31.142.AA[02]) - VAR - 333648, 334648, 335648, 743700 - FRONT POWER TAKE-OFF - CYLINDER - BREAKDOWN (31) - IMPLEMENT POWER TAKE OFF
3
7
8
2
1
6
4
10
9
home
15
17
13
18
16
11
14
12
5

Артикул

Название

Примечание

Количество

1

47057804

CYLINDER

Incl 2 - 18

1шт.

2

47057597

CYLINDER

1шт.

3

5196271

BEARING CARRIER

1шт.

4

5196275

BALL BEARING,45.00mm x 75.00mm x 16.00mm

1шт.

5

5196284

SEAL,65.00mm ID x 73.60mm OD x 5.30mm

1шт.

6

5196268

SEAL,65mm ID x 77mm OD x 8.5mm Thk

1шт.

7

5196281

PISTON

1шт.

8

5196266

SPRING,55mm OD x 128mm L

1шт.

9

5196267

SEAL,80.00mm ID x 90.00mm OD x 7.00mm

1шт.

10

5196244

CIRCLIP,82.00mm x 94.00mm x 2.00mm

1шт.

11

5196283

PLUG,39.5mm ID x 89.60-89.82mm OD x 10mm Thk

1шт.

12

47057766

BOLT,M39 x 4 x 120mm

1шт.

13

5194826

BRACKET

1шт.

14

11197771

LOCK WASHER

2шт.

15

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

2шт.

16

87739558

SOLENOID VALVE,14W

132MM, Green Connectors

1шт.

16

87739558R

REMAN-SOLENOID

1шт.

16

87739558C

CORE-SOLENOID

Return Number

1шт.

17

14326150

PLUG,M8 x 1.25mm

1шт.

18

4966279

BUSHING,14.2mm ID x 20mm OD x 20.2mm L

2шт.

Выбрано товаров: 20
