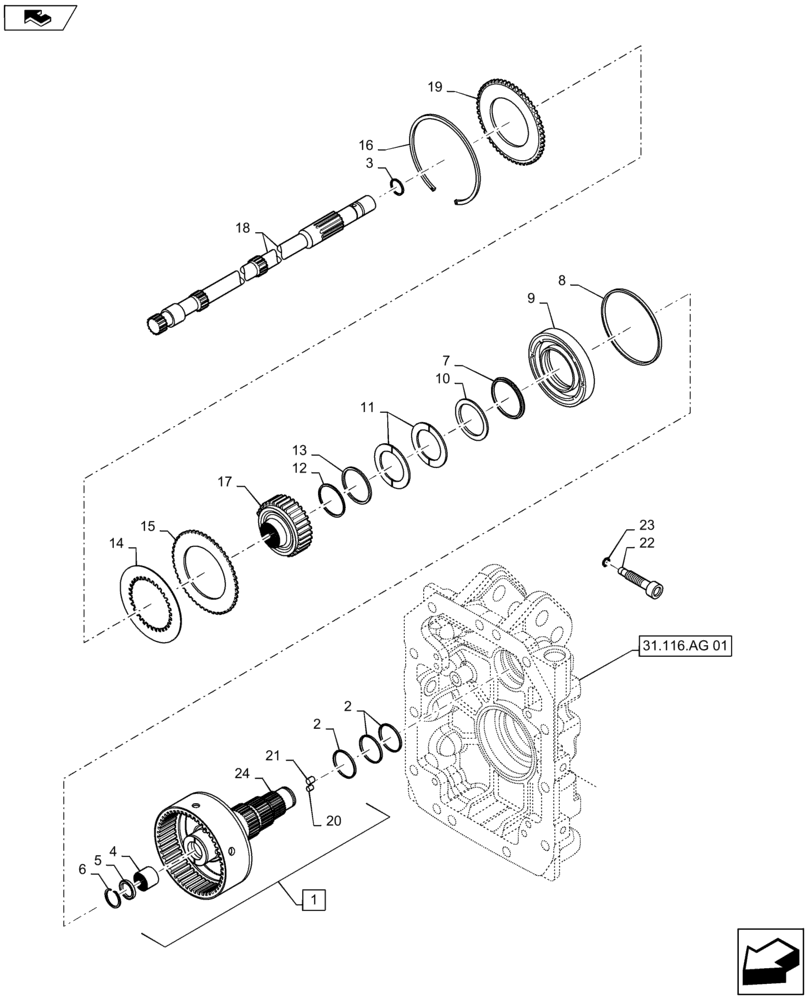

Запчасти Case IH MAXXUM 140 (31.116.AH) - VAR - 330801, 332805 + STD - REAR PTO ASSY, CONTROL, SHAFT AND CLUTCH (31) - IMPLEMENT POWER TAKE OFF

1

87305537

MAIN SHAFT

540/540E/1000 RPM, Rear PTO Input Shaft, Incl 4 - 6, 20, 21, 24

1шт.

2

5175983

SEALING RING,46mm ID

3шт.

3

13398576

SNAP RING,M40, Int

1шт.

4

5138952

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 26mm W

1шт.

5

5182702

GASKET,25mm ID x 33mm OD x 4mm Thk

1шт.

6

5182717

SNAP RING,1.5mm Thk

1шт.

7

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

8

5143775

SEAL,128.55mm ID x 136.06mm OD x 3.2mm Thk

1шт.

9

5198547

PISTON

1шт.

10

5182696

PISTON RING,56mm ID x 72.99mm OD x 3mm Thk

1шт.

11

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

8шт.

12

5191305

CIRCLIP,54mm ID

1шт.

13

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

14

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

Square Pattern

6шт.

15

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

6шт.

16

5162251

CIRCLIP,142.5mm ID

1шт.

17

5198672

HUB,Z32

1шт.

18

47135351

SHAFT,780mm L

STD Equipment for 40Km/H Road Speed Selection

1шт.

18

47128709

SHAFT,780mm L

STD Equipment for 40Km/H Economy or 50Km/H Road Speed Selection

1шт.

19

5198545

CLUTCH PLATE,89mm ID x 152.6mm OD x 7.5mm Thk

1шт.

20

14536590

PLUG,10.00mm Dia x 19.80mm L

1шт.

21

14536490

PLUG,8.00mm Dia x 15.70mm L

1шт.

22

5192537

HYD CONNECTOR,13mm D - 10mm D

1шт.

23

14453181

O-RING,0.489" ID x 0.07" Width

1шт.

24

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.
