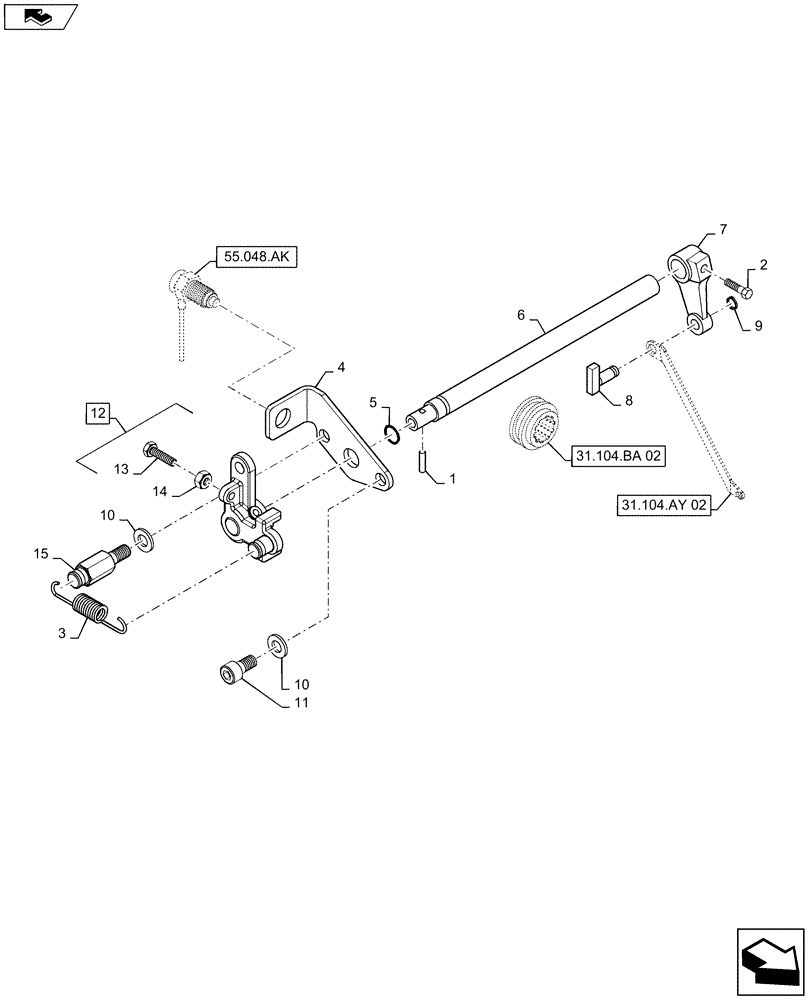

Запчасти Case IH MAXXUM 140 (31.104.AY[01]) - VAR - 331802, 332802, 743679 - GROUND SPEED PTO - LEVERS AND RELATED PARTS (31) - IMPLEMENT POWER TAKE OFF

1

14604271

PIN,M6 x 32, Coiled

1шт.

2

44013453

SCREW,Hex, M12 x 1.25 x 33mm

1шт.

3

47127609

SPRING

1шт.

4

47127446

SUPPORT

1шт.

5

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

6

47127553

PIN

1шт.

7

5192254

LEVER

1шт.

8

5192512

BLOCK

1шт.

9

11064171

SPRING CLIP,M10 x 8

1шт.

10

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

11

14360121

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

12

47127684

LEVER

Incl 13, 14

1шт.

13

16043724

BOLT,Hex, M8 x 1.25 x 28mm, Cl 8.8, Full Thd

1шт.

14

16100814

NUT,M8, Cl 8, DAC

1шт.

15

47127576

PIN

1шт.
