(31.104.AR[02]) - PTO CONTROL VALVE FOR 30KM/H AND 40KM/H

Запчасти Case IH MAXXUM 140 (31.104.AR[02]) - PTO CONTROL VALVE FOR 30KM/H AND 40KM/H (31) - IMPLEMENT POWER TAKE OFF

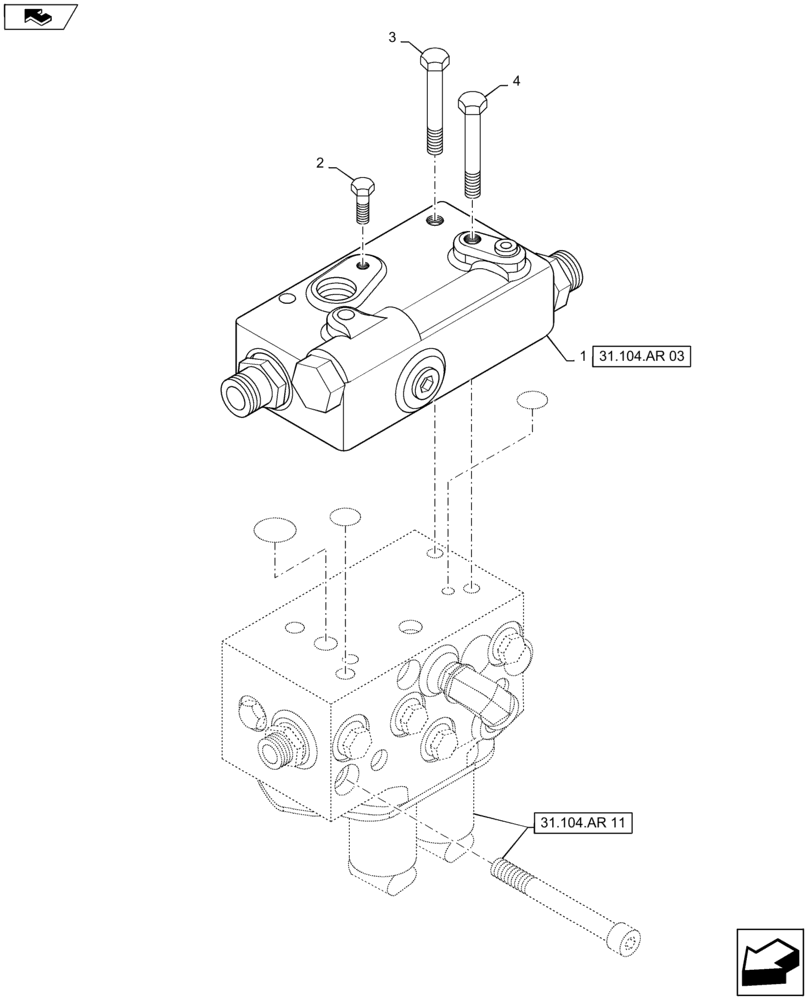

Схема запчастей Case IH MAXXUM 140 - (31.104.AR[02]) - PTO CONTROL VALVE FOR 30KM/H AND 40KM/H (31) - IMPLEMENT POWER TAKE OFF
2
31.104.ar 03
home
31.104.ar 11
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84140153

CONTROL VALVE

1шт.

2

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

3

16044521

SCREW,Hex, M8 x 65mm, Cl 8.8

2шт.

4

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.
