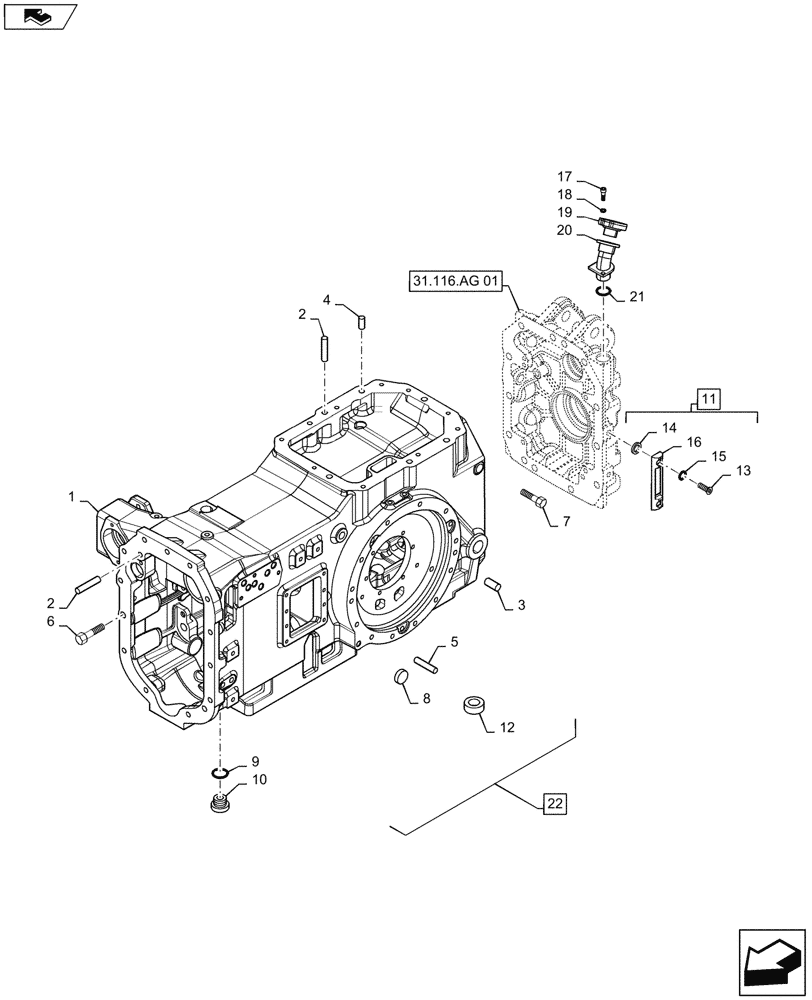

Запчасти Case IH MAXXUM 140 (27.100.AB) - VAR - 330247, 743766, 330291, 743764, 331908, 330909, 331909, 743811, 332330, 743736, 743736 - AND STD REAR AXLE HOUSING (27) - REAR AXLE SYSTEM

1

87574045

TRANSMISSION HOUSING

1шт.

2

4985062

DOWEL,15mm OD x 25mm L

6шт.

3

5110200

DOWEL,12mm OD x 25mm L

10шт.

4

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

Valid with STD Equip or Var 330247, 743766, 330291, 743764

1шт.

5

10839710

DOWEL,M10 x 15.00mm

2шт.

6

11394334

BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd

8шт.

7

11422030

BOLT,Hex, M14 x 1.5 x 55, 10.9

5шт.

8

14328201

PLUG,M10, Tapered

1шт.

9

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

10

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

11

87601120

INDICATOR

Incl 13 - 16

1шт.

12

14328701

PLUG,M20, Tapered

1шт.

12

504344694

PLUG,M25, Tapered

1шт.

12

10269801

PLUG,Cyl, M22 x 1.5mm

Valid with STD Equip or Var 331908, 330909, 331909, 743811

1шт.

13

47130059

SCREW,Pan HD, M12 x 41mm

2шт.

14

87349969

RUBBER SEAL

2шт.

15

47130060

O-RING

2шт.

16

NSS

NOT SOLD SEPARAT

Indicator, Incl in 11

1шт.

17

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

18

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

19

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

20

5198124

TUBE

1шт.

21

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

22

87574046

TRANSMISSION HOUSING

ASSY, Incl 1 - 5, 8, 12

1шт.

See Also Figure 27.100.AR, 27.106.AN, 31.104.AN

1шт.
