Запчасти Case IH MAXXUM 140 (25.108.AG[07]) - VAR - 330425 - CL.3 FRONT AXLE W/ BRAKES- STEERING KNUCKLE - HUB (25) - FRONT AXLE SYSTEM

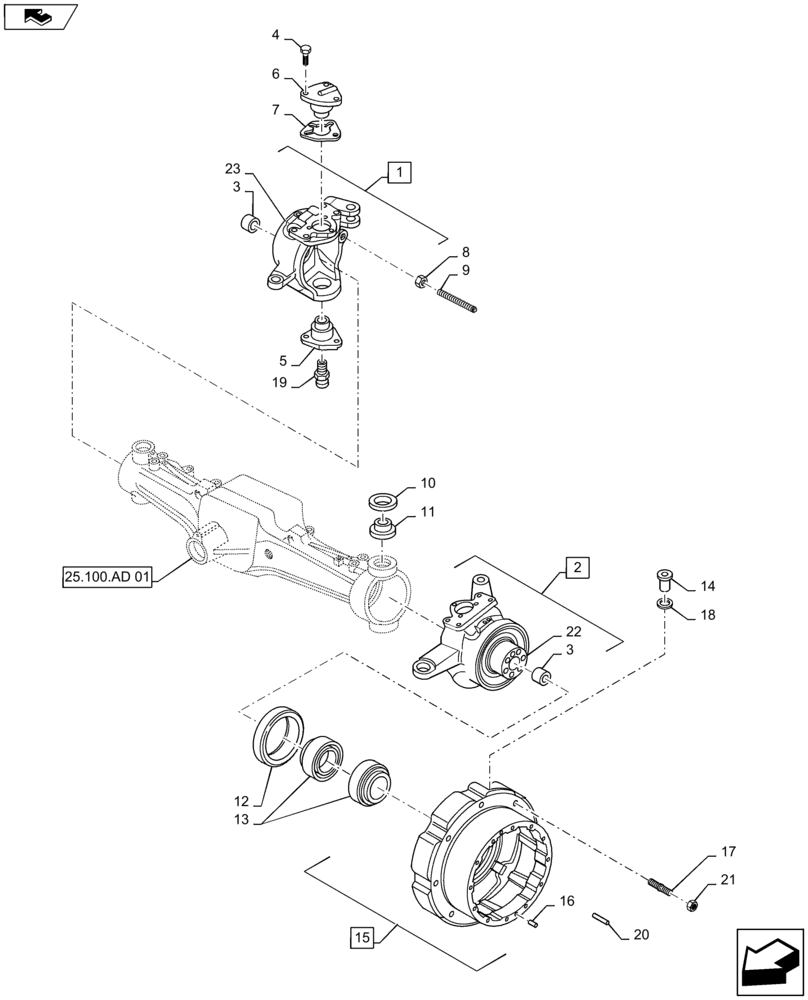

Схема запчастей Case IH MAXXUM 140 - (25.108.AG[07]) - VAR - 330425 - CL.3 FRONT AXLE W/ BRAKES- STEERING KNUCKLE - HUB (25) - FRONT AXLE SYSTEM
14
10
23
3
11
17
16
7
1
9
3
19
2
22
5
18
25.100.ad 01
20
15
13
8
12
4
home
21
6

Артикул

Название

Примечание

Количество

1

84197134

KNUCKLE

RH, Incl 3, 23

1шт.

2

84197105

KNUCKLE

LH, Incl 3, 22

2шт.

3

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

2шт.

4

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

5

87333763

BALL STUD

2шт.

6

87361688

BALL STUD

1шт.

7

5087426

SHIM KIT

1шт.

7

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

1шт.

7

5137459

SHIM,56.5mm ID x 97mm OD x 0.25mm Thk

1шт.

7

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

1шт.

7

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

7

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

8

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

9

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

10

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

3шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

12

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

1шт.

13

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

2шт.

14

10278340

PLUG,M28 x 1.5 x 11, Brass

1шт.

15

87529978

HUB

Incl 16

1шт.

16

4985063

DOWEL,12mm OD x 20mm L

2шт.

17

87618916

STUD

16шт.

18

87380329

SEALING WASHER,28.00mm ID x 38.00mm OD x 1.50mm

1шт.

19

13407211

LUBE NIPPLE,M10 x 1

3шт.

20

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

16шт.

21

87678013

NUT,M16 x 1.5

16шт.

22

NSS

NOT SOLD SEPARAT

Knuckle, Incl in 2

1шт.

23

NSS

NOT SOLD SEPARAT

Knuckle, Incl in 1

1шт.

Выбрано товаров: 28
