(25.108.AB[06]) - VAR - 330430 - CL.4 FRONT AXLE W/ BRAKES - GEARS AND DIFFERENTIAL AXLE

Запчасти Case IH MAXXUM 140 (25.108.AB[06]) - VAR - 330430 - CL.4 FRONT AXLE W/ BRAKES - GEARS AND DIFFERENTIAL AXLE (25) - FRONT AXLE SYSTEM

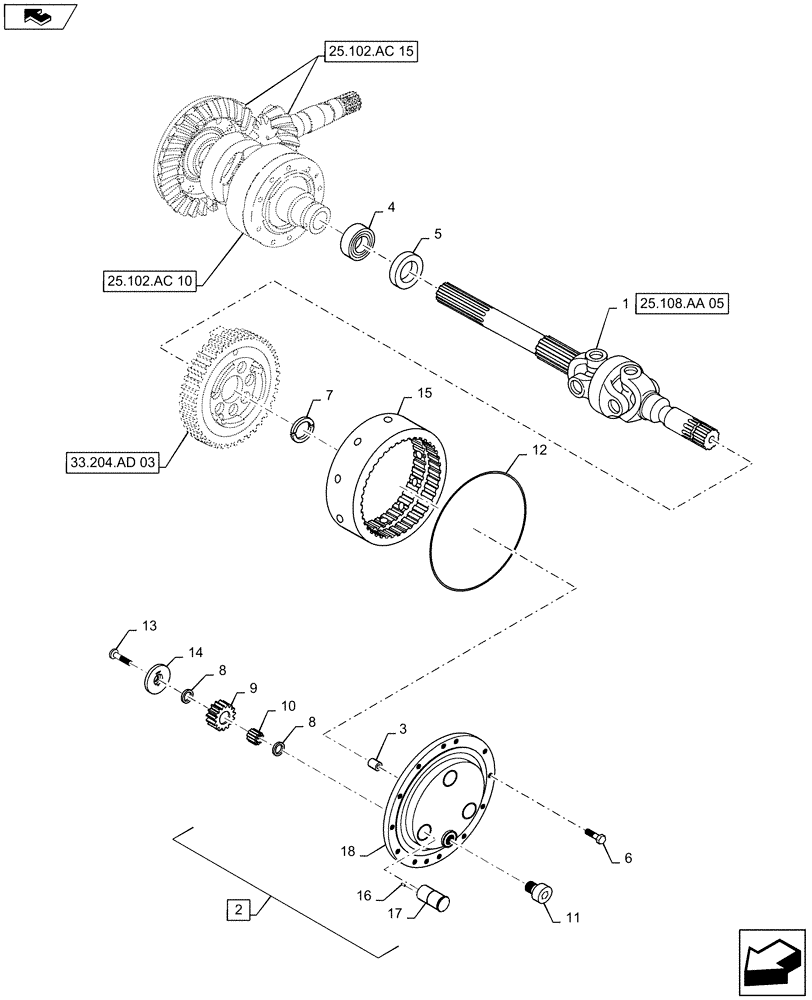

Схема запчастей Case IH MAXXUM 140 - (25.108.AB[06]) - VAR - 330430 - CL.4 FRONT AXLE W/ BRAKES - GEARS AND DIFFERENTIAL AXLE (25) - FRONT AXLE SYSTEM
18
8
10
12
8
16
25.108.aa 05
6
3
15
2
13
1
11
33.204.ad 03
25.102.ac 10
17
25.102.ac 15
14
4
7
home
5
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87743318

SHAFT

RH

1шт.

1

87743319

SHAFT

LH

1шт.

2

87473022

PLANET CARRIER

Incl 3, 16, 17, 18

2шт.

3

87604978

BUSHING

1шт.

4

87349670

SEAL,42mm ID x 62mm OD x 23mm Thk

2шт.

5

87598115

SPACER

2шт.

6

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

7

87525785

RING

2шт.

8

87330360

THRUST WASHER

12шт.

9

87330345

IDLER PINION

6шт.

10

87330366

ROLLER BEARING,41.4mm ID x 51.4mm OD x 35.5mm W

6шт.

11

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

12

14469481

O-RING,10.984" ID x 11.262" OD x 0.139"

2шт.

13

87571800

HEX SOC SCREW,M12 x 1.25 x 35mm

6шт.

14

87681967

SPACER

6шт.

15

87332016

RING GEAR

2шт.

16

10333210

DOWEL,M4 x 10.00mm

6шт.

17

87471121

PIN

6шт.

18

NSS

NOT SOLD SEPARAT

Carrier, Incl in 2

1шт.
