Запчасти Case IH MAXXUM 140 (25.102.AC[10]) - VAR - 330408, 330429, 330430 - CL.4 FRONT AXLE - DIFFERENTIAL BREAKDOWN (25) - FRONT AXLE SYSTEM

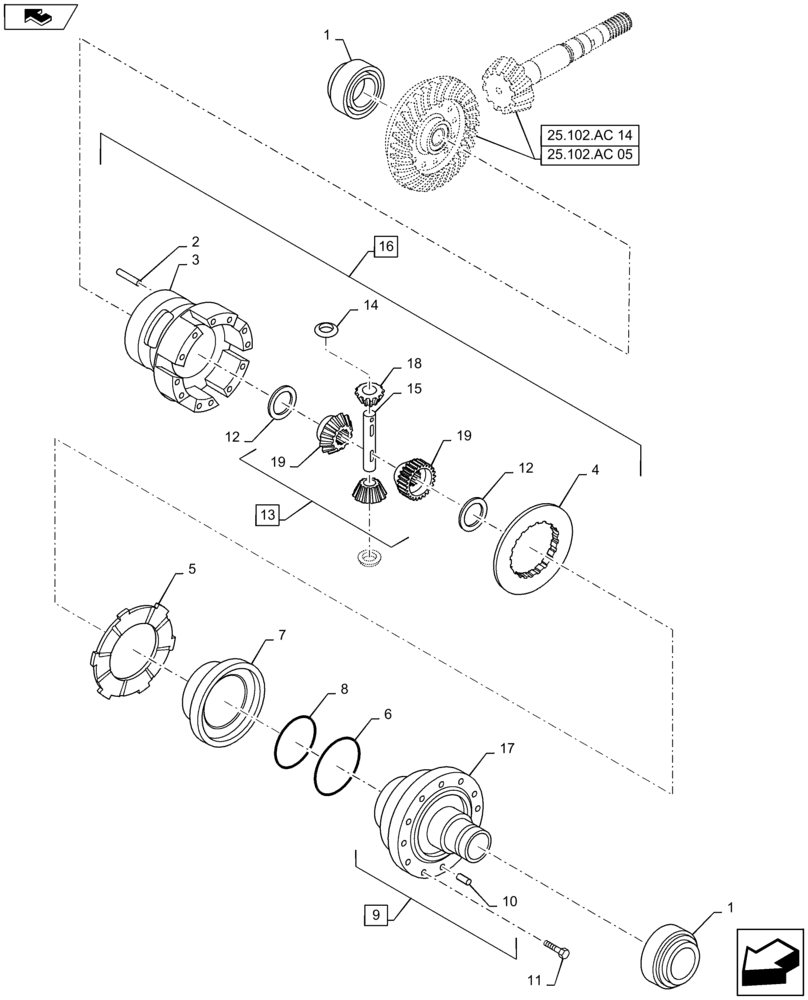

Схема запчастей Case IH MAXXUM 140 - (25.102.AC[10]) - VAR - 330408, 330429, 330430 - CL.4 FRONT AXLE - DIFFERENTIAL BREAKDOWN (25) - FRONT AXLE SYSTEM
9
15
4
14
13
12
18
16
1
6
19
19
1
10
home
25.102.ac 05
7
3
11
2
8
5
12
25.102.ac 14
17

Артикул

Название

Примечание

Количество

1

87568699

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

2шт.

2

87357828

PIN

1шт.

3

87331244

HOUSING

1шт.

4

5193452

DISC

5шт.

5

5192489

DISC

6шт.

6

14467281

O-RING,0.139" Thk x 5.484" ID, -254, Cl 7, 75 Duro

1шт.

7

5192492

PISTON

1шт.

8

14465181

O-RING,2.859" ID x 3.127" OD x 0.139"

1шт.

9

87331240

HALF-FLANGE

Incl 10, 17

1шт.

10

5198864

PLUG

1шт.

11

84394072

BOLT,M10 x 1.25 x 30mm

12шт.

12

5192475

SHIM,45.00mm ID x 66.00mm OD x 3.00mm

1шт.

12

5192568

SHIM,45.00mm ID x 66.00mm OD x 2.60mm

1шт.

12

5192569

SHIM,45.00mm ID x 66.00mm OD x 2.70mm

1шт.

12

5192570

SHIM,45.00mm ID x 66.00mm OD x 2.80mm

1шт.

12

5192571

SHIM,45.00mm ID x 66.00mm OD x 2.90mm

1шт.

12

5192572

SHIM,45.00mm ID x 66.00mm OD x 3.10mm

1шт.

12

5192573

SHIM,45.00mm ID x 66.00mm OD x 3.20mm

1шт.

12

5192574

SHIM,45.00mm ID x 66.00mm OD x 3.30mm

1шт.

12

5192575

SHIM,45.00mm ID x 66.00mm OD x 3.40mm

1шт.

13

47129159

GEAR SET

1шт.

14

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

15

87329332

AXLE DIFFERENTIAL

1шт.

16

NS

NOT SERVICED

Differential, Order Components, 2 - 15

1шт.

17

NSS

NOT SOLD SEPARAT

Flange, Incl in 9

1шт.

18

NSS

NOT SOLD SEPARAT

Gear, Incl in 13

2шт.

19

NSS

NOT SOLD SEPARAT

Pinion, Incl in 13

2шт.

Выбрано товаров: 27
