(25.100.AD[05]) - VAR - 330429, 330430 - CL.4 SUSPENDED FRONT AXLE - HOUSING

Запчасти Case IH MAXXUM 140 (25.100.AD[05]) - VAR - 330429, 330430 - CL.4 SUSPENDED FRONT AXLE - HOUSING (25) - FRONT AXLE SYSTEM

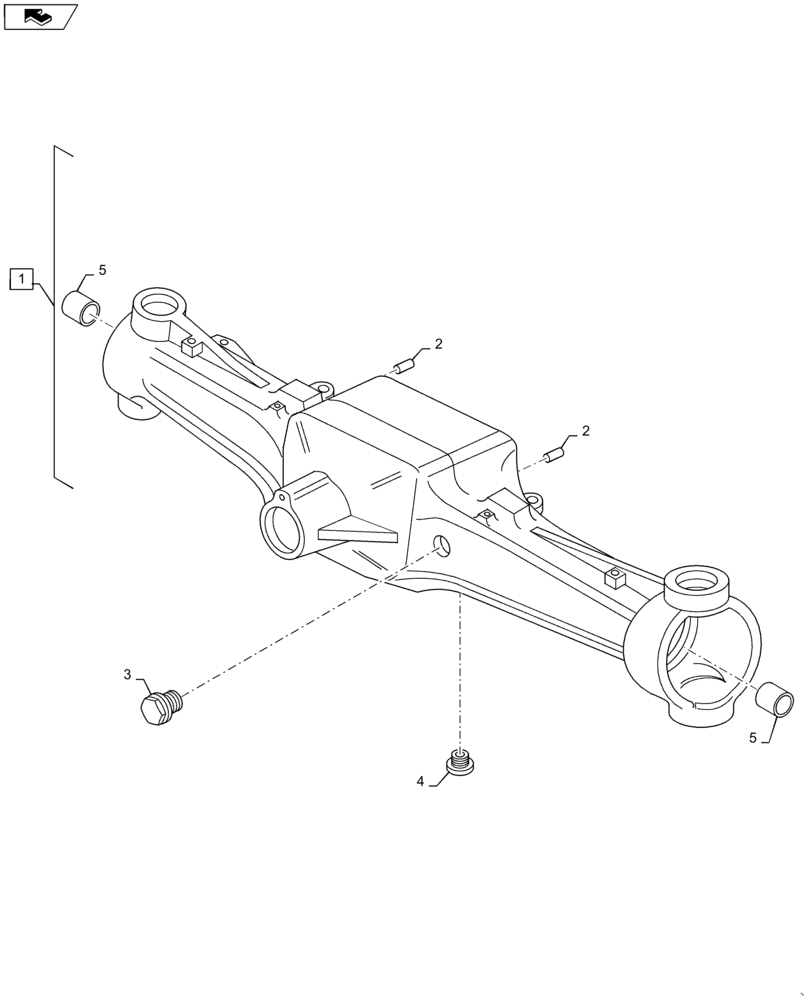

Схема запчастей Case IH MAXXUM 140 - (25.100.AD[05]) - VAR - 330429, 330430 - CL.4 SUSPENDED FRONT AXLE - HOUSING (25) - FRONT AXLE SYSTEM
5
4
2
2
1
home
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87633706

AXLE HOUSING

Incl 2, 5

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

4

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

5

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

2шт.

Выбрано товаров: 5
