Запчасти Case IH MAXXUM 140 (21.152.AK) - STD + VAR - 330247, 743766, 330291, 743764 - TRANSMISSION 17X16 SPS - HYDRAULIC CENTRAL SPLITTER (21) - TRANSMISSION

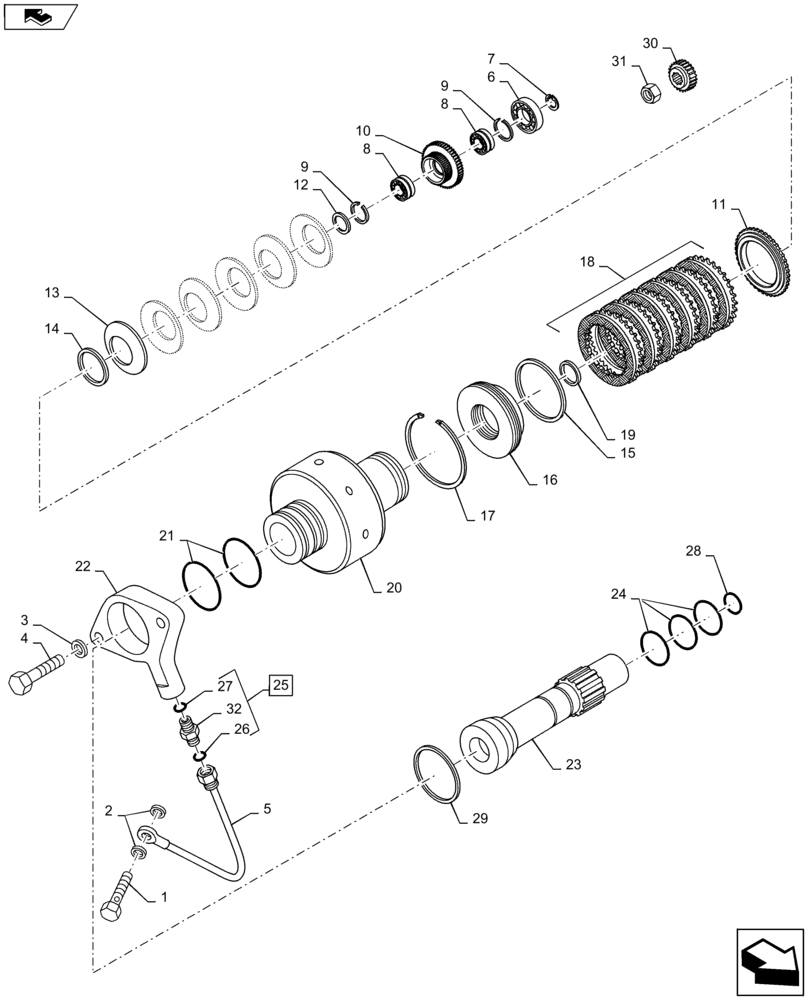

Схема запчастей Case IH MAXXUM 140 - (21.152.AK) - STD + VAR - 330247, 743766, 330291, 743764 - TRANSMISSION 17X16 SPS - HYDRAULIC CENTRAL SPLITTER (21) - TRANSMISSION
22
1
5
10
21
8
30
6
20
28
29
19
32
24
11
7
3
home
23
31
9
17
14
27
18
8
25
13
4
26
2
15
9
12
16

Артикул

Название

Примечание

Количество

1

10184311

BANJO BOLT,M14 x 1.5 x 27mm

1шт.

2

10280060

SEAL,M14.2 x 20 x 1.5

2шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

4

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

5

5197225

TUBE

1шт.

6

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

7

11062176

CIRCLIP,M85, Int

1шт.

8

5197355

BALL BEARING,60mm ID x 85mm OD x 13mm W

2шт.

9

10577976

SNAP RING,M60, Ext

2шт.

10

5196796

GEAR

1шт.

11

5167824

DISC,113.5mm ID x 154.35mm OD x 7.5mm Thk

1шт.

12

47127445

CUP,69mm ID x 79mm OD x 3mm

1шт.

13

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

6шт.

14

47127360

RING,61mm ID x 85.07mm OD x 3mm Thk

1шт.

15

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

1шт.

16

87547824

PISTON

1шт.

17

5162251

CIRCLIP,142.5mm ID

1шт.

18

5197329

NOTCHED DISK

Clutch Pack

1шт.

19

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

20

5196843

HOUSING

1шт.

21

5191927

SEALING RING,67mm ID x 75mm OD x 2.60mm

2шт.

22

47124533

MANIFOLD

1шт.

23

47131632

SHAFT,147mm L

1шт.

24

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

3шт.

25

5196844

HYD CONNECTOR

Incl 26, 27, 32

1шт.

26

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

27

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

28

14458180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1шт.

29

47131631

CIRCLIP,51.55mm ID x 84mm OD x 2.90mm

1шт.

30

5196793

GEAR

1шт.

31

5147930

RING NUT,M45 x 1.5

1шт.

32

NSS

NOT SOLD SEPARAT

Connector, Incl in 25

1шт.

Выбрано товаров: 32
