Запчасти Case IH MAXXUM 140 (21.152.AA[06]) - VAR - 330283 - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - SPEED ENGAGEMENT REAR CLUTCH - C3 DISKS (21) - TRANSMISSION

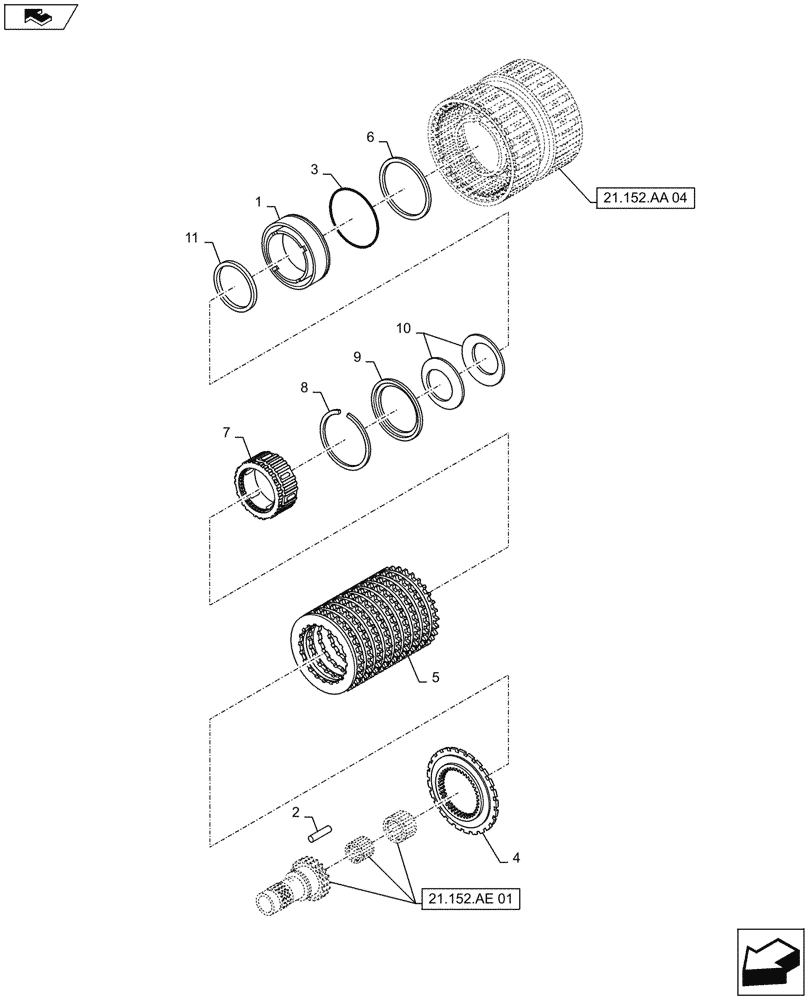

Схема запчастей Case IH MAXXUM 140 - (21.152.AA[06]) - VAR - 330283 - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - SPEED ENGAGEMENT REAR CLUTCH - C3 DISKS (21) - TRANSMISSION
21.152.aa 04
2
9
5
8
home
4
1
3
1
6
1
7
10
21.152.ae 01

Артикул

Название

Примечание

Количество

1

47136621

PISTON

1шт.

2

84335461

PIN

2шт.

3

5172302

GASKET,140.55mm ID x 148mm OD x 3.2mm Thk

1шт.

4

47136622

THRUST PLATE

1шт.

5

47136624

CLUTCH PACK

Quantity of Discs Depending on the Total Thickness of the Stack, 45.4mm - 45.6mm

1шт.

6

5199232

SEALING RING

1шт.

7

47136629

HUB

1шт.

8

47136619

SNAP RING

1шт.

9

81865531

RETAINER,100.2mm ID x 112.4mm OD x 4mm Thk

1шт.

10

81864187

SPRING

10шт.

11

47136691

SPACER

1шт.

Выбрано товаров: 11
