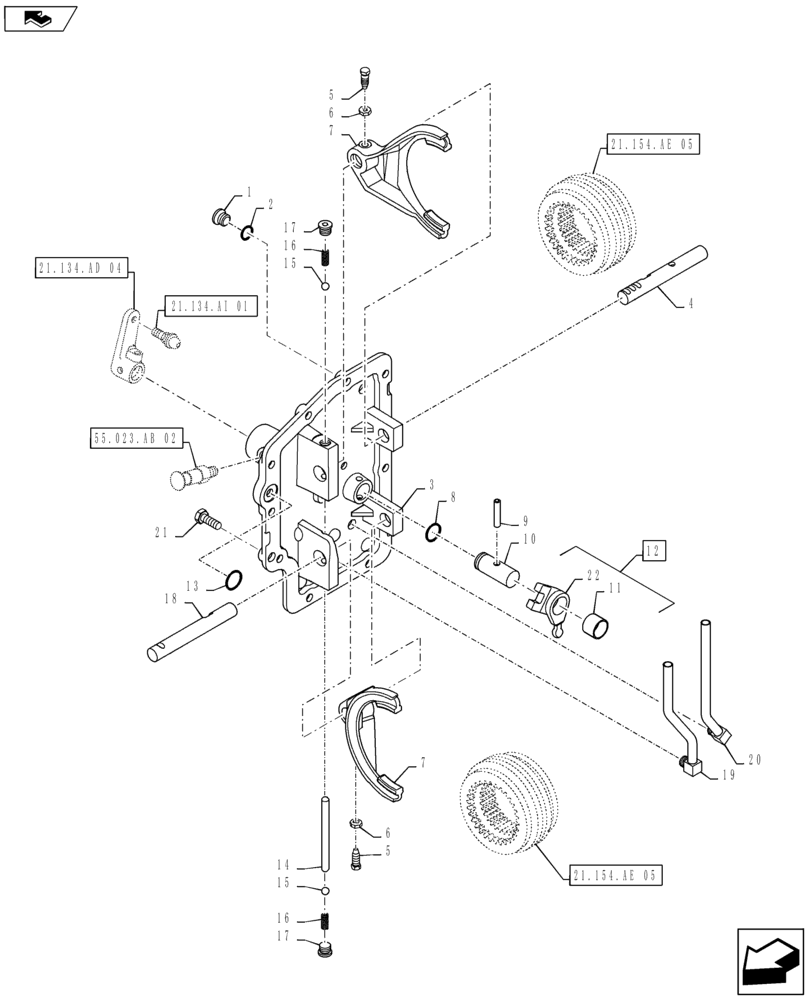

Запчасти Case IH MAXXUM 140 (21.134.AD[03]) - TRANSMISSION 24X24 (40 KM/H) HI-LO - GEARBOX COVER AND SPEED GEARSHIFT MECHANISM (21) - TRANSMISSION

1

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

2шт.

2

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

3

87306717

COVER

1шт.

4

47137662

ROD

3 and 4 Speed

1шт.

5

81804978

SET SCREW,Hex Hd, 3/8"-24 x .97", Cone Pt

2шт.

6

83908682

NUT,3/8"-24, G2

2шт.

7

81864555

SHIFTER FORK

2шт.

8

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

1шт.

9

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

10

82038633

CONTROL SHAFT

1шт.

11

5167877

BUSHING,24mm ID x 27mm OD x 20mm L

1шт.

12

82031063

LEVER

Incl 11, 22

1шт.

13

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

14

81864543

PIN,9.47mm OD x 118.25mm L

1шт.

15

20063480

BALL,Metal, 9.525mm, Gr 100

2шт.

16

83407013

SPRING

2шт.

17

83911570

HEX SOCKET PLUG,9/16"-18

2шт.

18

47137661

ROD

1 and 2 Speed

1шт.

19

82006450

TUBE,12 mm OD, 182, 45 mm Length

1шт.

20

82006451

TUBE,12 mm OD, 173, 83 mm Length

1шт.

21

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

10шт.

22

NSS

NOT SOLD SEPARAT

Lever, Incl in 12

1шт.
