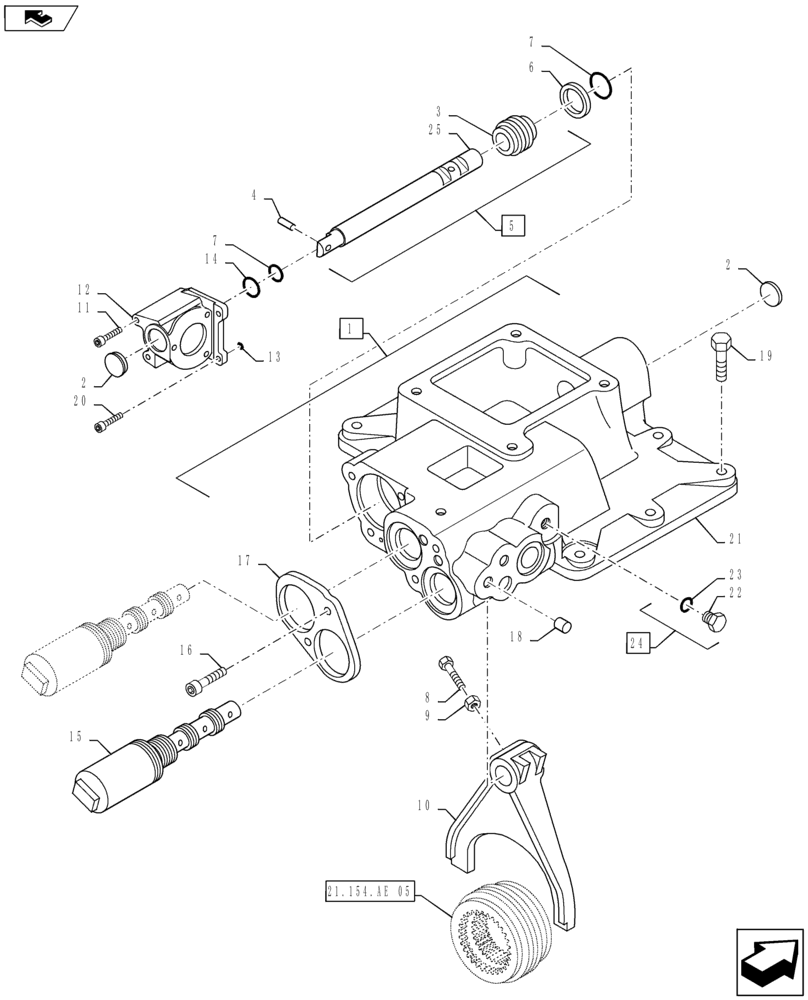

Запчасти Case IH MAXXUM 140 (21.134.AC[01]) - TRANSMISSION 24X24 (40 KM/H) HI-LO - COVER FOR REVERSER – FORK AND VALVES (21) - TRANSMISSION

1

82030138

HOUSING

Incl 18, 21, 24

1шт.

2

83417039

PLUG

Cup

2шт.

3

82015192

PISTON

1шт.

4

82015193

PIN

1шт.

5

82022085

SHAFT

Incl 3, 4, 25

1шт.

6

5175009

SEALING RING,34.55mm ID x 42.02mm OD x 3.2mm Thk

1шт.

7

81902618

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

2шт.

8

82019918

SCREW,Hex, M10 x 1.5 x 26mm, Stainless

2шт.

9

82895198

NUT,Jam, Hex, M10, 5mm High, CL 04

2шт.

10

82007504

SHIFTER FORK

1шт.

11

10589621

SCREW,Hex Skt, M6 x 80mm, Cl 8.8

2шт.

12

82031670

COVER

Housing, Potentiometer Drive

1шт.

13

49886

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.

14

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

15

87739558

SOLENOID VALVE,14W

Shuttle Synchro Control

2шт.

15

87739558R

REMAN-SOLENOID

Shuttle Synchro Control

1шт.

15

87739558C

CORE-SOLENOID

Return Number

1шт.

16

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

17

82022595

BRACKET

Valve Retaining

1шт.

18

14536490

PLUG,8.00mm Dia x 15.70mm L

5шт.

19

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

6шт.

20

14305421

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

21

82031674

HOUSING

1шт.

22

NSS

NOT SOLD SEPARAT

Plug, Incl in 24

1шт.

23

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

9625178

PLUG,9/16" - 18 ORB

Incl 22, 23

1шт.

25

NSS

NOT SOLD SEPARAT

Rod, Incl in 5

1шт.
