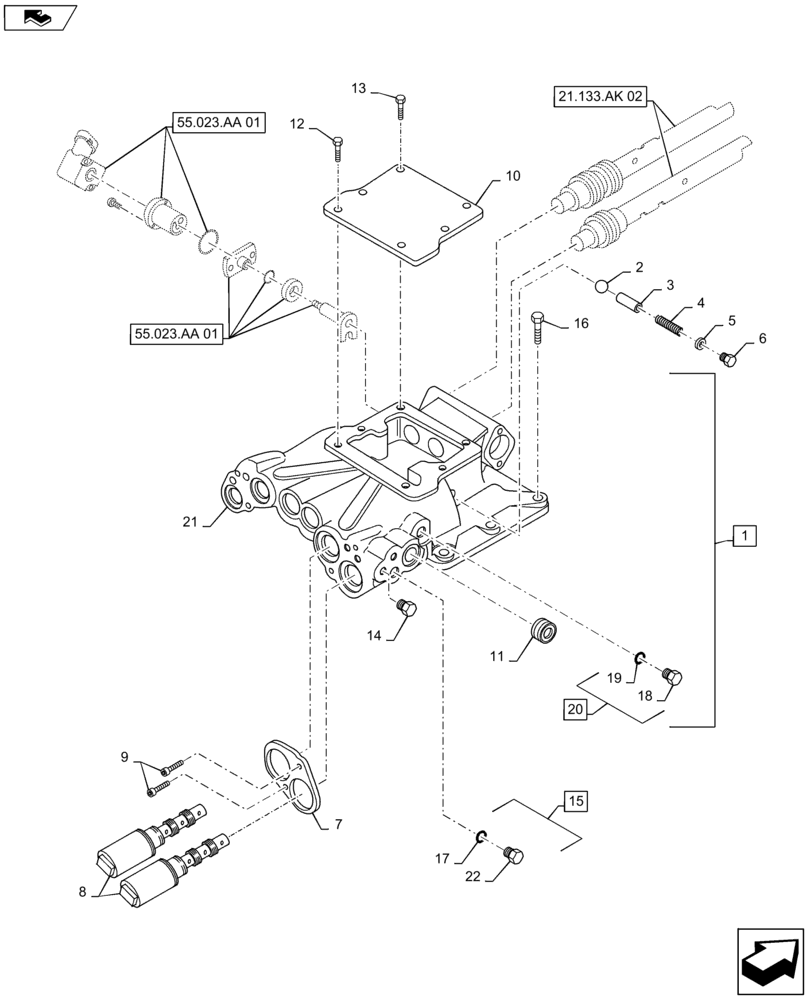

Запчасти Case IH MAXXUM 140 (21.133.AK[01]) - VAR - 330283 - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - COVER FOR REVERSER - CONTROL FOR 4/5 UNITS AND VALVE (21) - TRANSMISSION

1

47127526

COVER ASSY

Incl 11, 14, 20, 21

1шт.

2

88210005

BALL,10mm OD

2шт.

3

81864220

PLUNGER

2шт.

4

83407013

SPRING

2шт.

5

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

6

83911570

HEX SOCKET PLUG,9/16"-18

2шт.

7

82022595

BRACKET

2шт.

8

87739558

SOLENOID VALVE,14W

Shuttle Synchro Control

4шт.

8

87739558R

REMAN-SOLENOID

Shuttle Synchro Control

1шт.

8

87739558C

CORE-SOLENOID

Return Number

1шт.

9

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

4шт.

10

84488514

PLATE

1шт.

11

82990913

BUSHING,42mm ID x 49.975 - 49.967mm OD x 24.50mm Thk

2шт.

11

82990914

BUSHING,42mm ID x 49.982 - 49.976mm OD x 24.50mm Thk

2шт.

11

82990915

BUSHING,42mm ID x 49.990 - 49.983mm OD x 24.50mm Thk

2шт.

11

82990916

BUSHING,42mm ID x 49.998 - 49.991mm OD x 24.50mm Thk

2шт.

11

82990917

BUSHING,42mm ID x 50.006 - 49.999mm OD x 24.50mm Thk

2шт.

12

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

13

15971824

SCREW,Hex, M10 x 1.25 x 100mm, Cl 8.8

4шт.

14

14536490

PLUG,8.00mm Dia x 15.70mm L

12шт.

15

82857995

PLUG,7/16" - 20 ORB

Incl 17, 22

4шт.

16

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

4шт.

17

82857994

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4шт.

18

NSS

NOT SOLD SEPARAT

1шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

9625178

PLUG,9/16" - 18 ORB

Incl 18, 19

1шт.

21

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Plug, Incl in 15

1шт.
