Запчасти Case IH MAXXUM 140 (21.104.AD) - TRANSMISSION 24X24 (40 KM/H) HI-LO - LOW PRESSURE PIPES AND FILTER (21) - TRANSMISSION

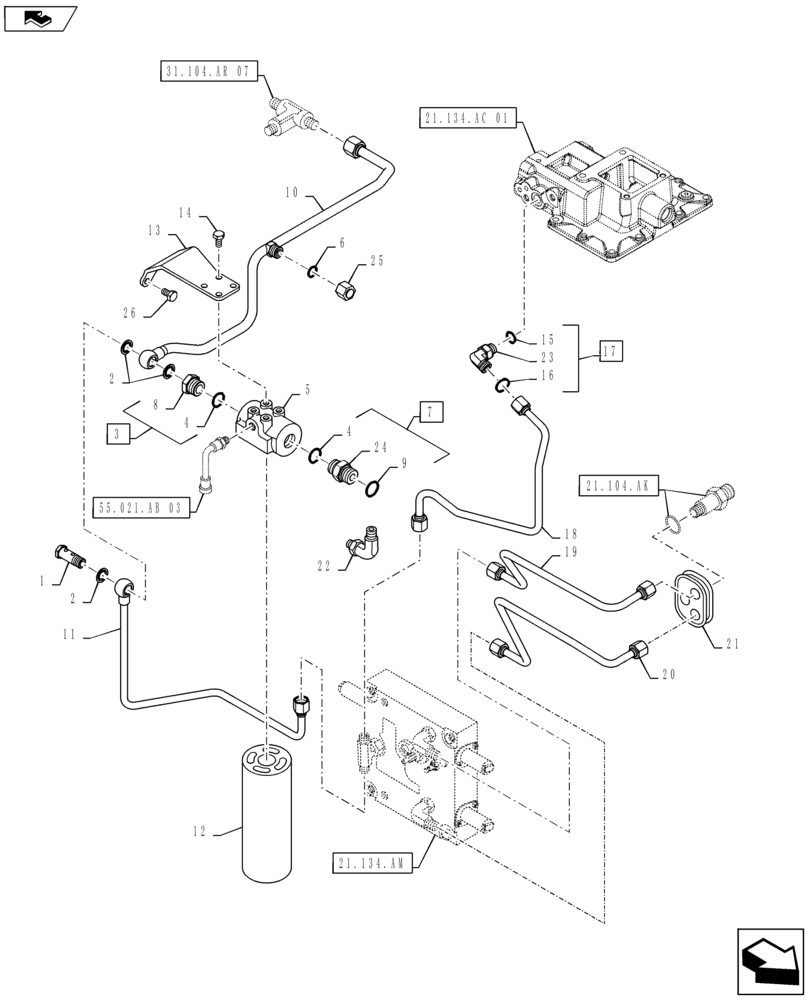

Схема запчастей Case IH MAXXUM 140 - (21.104.AD) - TRANSMISSION 24X24 (40 KM/H) HI-LO - LOW PRESSURE PIPES AND FILTER (21) - TRANSMISSION
23
home
16
2
12
10
1
21.134.am
20
6
7
15
14
24
17
22
9
5
19
11
25
2
31.104.ar 07
55.021.ab 03
13
8
3
4
26
18
21
21.104.ak
21.134.ac 01
4

Артикул

Название

Примечание

Количество

1

5173680

BANJO BOLT,Pipe, M18 x 1.5 x 56mm

1шт.

2

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

3шт.

3

47125546

HYD CONNECTOR

Incl 4, 8

1шт.

4

5185506

O-RING,23.47mm ID x 2.95mm Width

2шт.

5

5185368

FILTER HEAD

Incl Pressure Switch

1шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

5185521

HYD CONNECTOR

Incl 4, 9, 24

1шт.

8

NSS

NOT SOLD SEPARAT

Connector Body, Incl in 3

1шт.

9

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

84475890

TUBE

to LH Control Valve

1шт.

11

84482748

HYD TUBE

1шт.

12

84226258

HYDRAULIC OIL FILTER,94mm OD x 240mm L, 1" 3/8-12UNF

1шт.

13

47124353

BRACKET

1шт.

14

81821827

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

16

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

17

5185054

ELBOW,90 Degrees, M18 x 1.5 ORB 13/16-16 ORFS

Incl 15, 16, 23

1шт.

18

84482752

HYD TUBE

1шт.

19

47130564

HYD TUBE

1шт.

20

84482750

HYD TUBE

1шт.

21

82008251

GROMMET

1шт.

22

84479731

90 ELBOW

1шт.

23

NSS

NOT SOLD SEPARAT

Elbow, Incl in 17

1шт.

24

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

25

9840575

CAP,13/16" - 16 ORFS

1шт.

26

15970424

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 26
