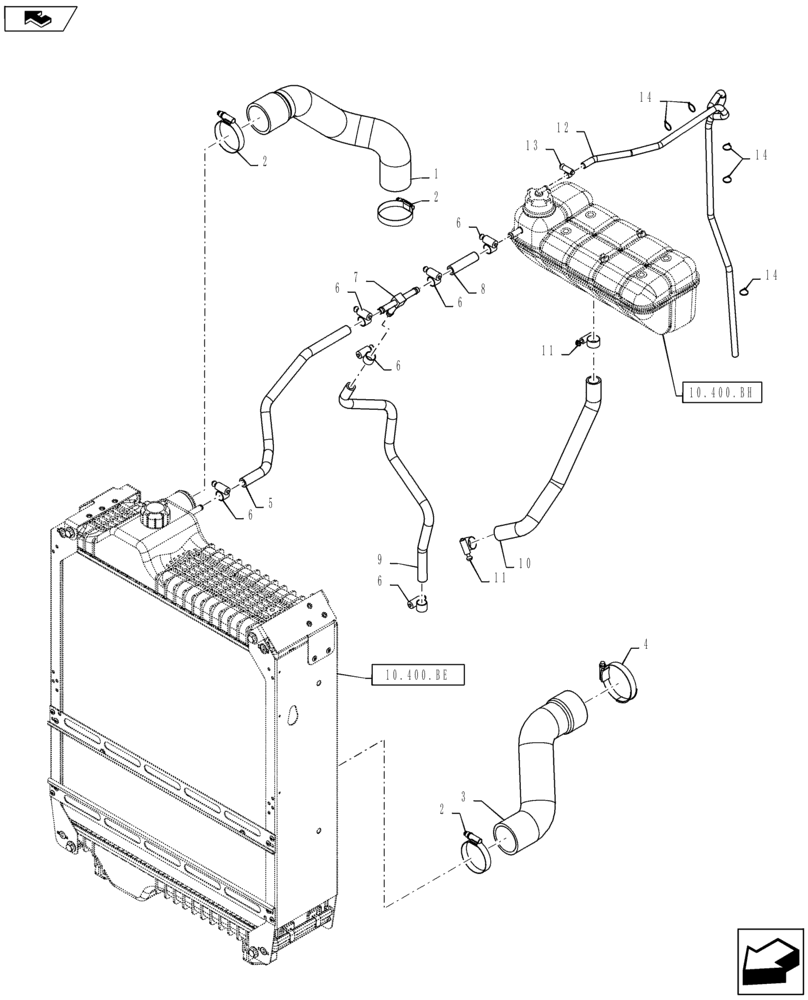

Запчасти Case IH MAXXUM 140 (10.400.AY[02]) - COOLING - RADIATOR HOSES (10) - ENGINE

1

82030133

RADIATOR HOSE,44.50 mm ID, 50.00 mm ID x 304.00 mm, SAE J20R4 CLASS C

Upper

1шт.

2

87374233

COLLAR CLAMP,40 - 60mm

3шт.

3

82030135

RADIATOR HOSE,50.00 mm ID, 58.00 mm ID x 259.00 mm, SAE J20R4 CLASS

Lower

1шт.

4

82036351

HOSE CLAMP,50 - 70mm X 14.5mm

1шт.

5

84419769

RADIATOR HOSE,16mm OD x 419mm L

1шт.

6

87313783

CLAMP,10mm - 16mm, Worm Gear

6шт.

7

123949A1

TEE

1шт.

8

84416719

RADIATOR HOSE,16mm OD x 60mm L

1шт.

9

84419771

RADIATOR HOSE,16mm OD x 452mm L

1шт.

10

84490378

RADIATOR HOSE,19.10mm ID x 25.10mm OD x 407.28mm L

1шт.

11

82039344

HOSE CLAMP,20mm - 32mm

2шт.

12

82031702

TUBE,7.62mm ID X 1295mm

1шт.

13

13000090

HOSE CLAMP,8mm - 12mm, Worm Gear

1шт.

14

86566989

CABLE TIE,208mm L

5шт.
