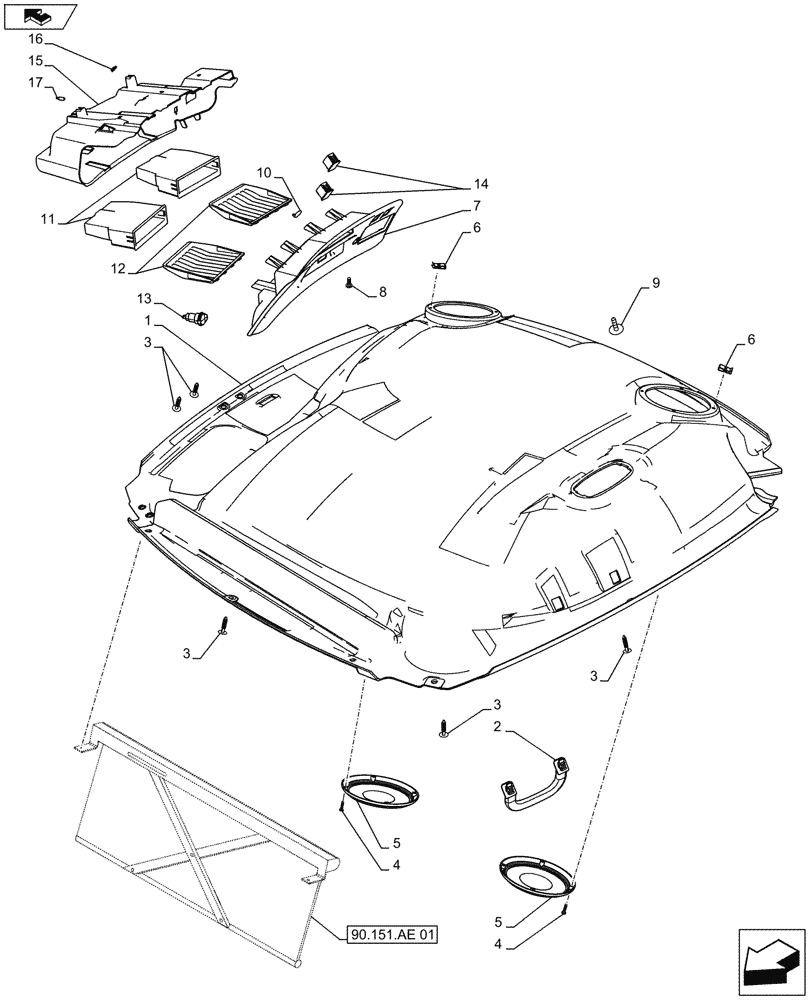

Запчасти Case IH MAXXUM 140 (90.160.AX[03A]) - VAR - 331515, 331520, 743729 + STD - CAB INTERIOR TRIM WITH SUN CURTAIN FOR ROOF WITH HIGH PROFILE - HEADLINER - D9018 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47365206

HEADLINER

1шт.

2

82035643

HANDLE

1шт.

3

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

5шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

82022875

GRILLE,185mm OD

2шт.

6

81872135

NUT,Retaining, M4.20

8шт.

7

47388509

BEZEL

, Serial Range: -C7408

1шт.

7

47575526

CONSOLE

, Serial Range: D7408-C7410

1шт.

7

47778962

CONSOLE

, Start Serial: D7410

1шт.

8

15903904

SCREW,Pan Hd, M4.8 x 1.6 x 19mm

7шт.

9

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

10

47363750

PLUG,23.1mm OD

1шт.

11

47364183

BOX

2шт.

12

47470835

INSERT

2шт.

13

84320279

CIGARETTE LIGHTER

1шт.

14

82022763

PLUG

2шт.

15

47378856

CAB STORAGE BOX

Incl 8 (Qty 3), 16, 17, Serial Range: -C7408

1шт.

Base Colour High Roof less Visibility Panel, VAR 331515, 331520, 743729

1шт.

15

47718243

BEZEL

Incl 8 (Qty 3), 16, 17, Start Serial: D7408

1шт.

Base Colour High Roof less Visibility Panel, VAR 331515, 331520, 743729

1шт.

16

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

7шт.

Base Colour High Roof less Visibility Panel, VAR 331515, 331520, 743729

1шт.

17

47378854

SPACER,5mm ID x 8mm OD x 7.5mm L

3шт.

Base Colour High Roof less Visibility Panel, VAR 331515, 331520, 743729

1шт.
