Запчасти Case IH MAXXUM 140 (90.160.AM[01]) - VAR - 330869, 330631, 336631, 743723, 330719 + STD - CONTROLS COVER - LH - C9014 (90) - PLATFORM, CAB, BODYWORK AND DECALS

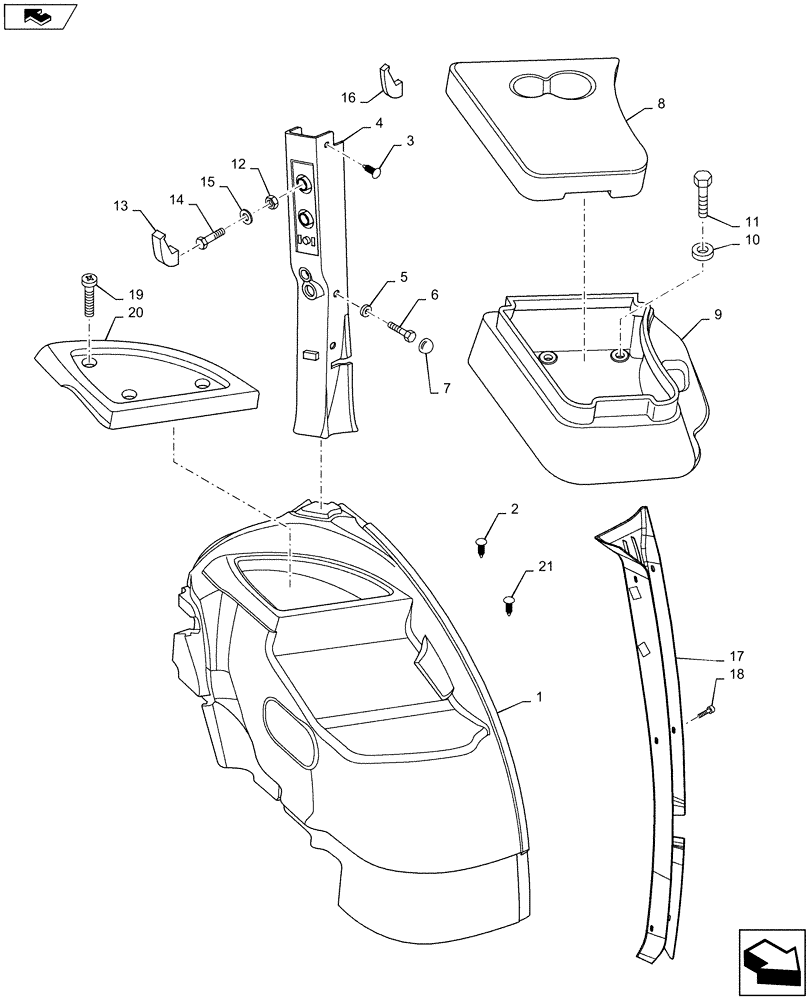

Схема запчастей Case IH MAXXUM 140 - (90.160.AM[01]) - VAR - 330869, 330631, 336631, 743723, 330719 + STD - CONTROLS COVER - LH - C9014 (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
12
17
10
3
16
1
21
5
18
14
8
13
11
9
2
home
20
7
15
6
19

Артикул

Название

Примечание

Количество

1

84242779

PADDING

1шт.

1

84242778

PADDING

LH Front Storage Box, VAR 330869 or with Instruction Seat, VAR 330719

1шт.

2

81870039

FASTENER,M8 x 1.5 x 22mm

2шт.

3

82023460

STUD,M7.85 x 19.50mm, Plastic

4шт.

4

84295536

PADDING

1шт.

5

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

6

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

7

82012814

CAP,M10

2шт.

8

82031622

SOFT TRIM

LH Front Storage Box, VAR 330869

1шт.

9

82027464

TOP COVER

LH Front Storage Box, VAR 330869

1шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

11

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

3шт.

12

83903071

NUT,Hex, Thin, M4

1шт.

13

82872313

COAT HOOK

1шт.

14

82880745

SCREW,Phillips Drive, Pan HD, M4 x 16mm, Cl 4.8

1шт.

15

82935771

WASHER,5.6mm ID x 12.7mm OD x 1.25mm Thk

1шт.

16

83904461

RETAINER

1шт.

17

84325618

COVER

1шт.

18

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

7шт.

19

84187813

SCREW,Tap, Torx Pan Hd, M5.5 x 1.8 x 16mm

4шт.

20

82027460

TRAY

Standard Equipment and with Fast Steer, VAR 330631, 336631

1шт.

21

87539768

ANCHOR,Button Hd, 4.70 mm x 11.00 mm, Nylon

3шт.

Выбрано товаров: 22
