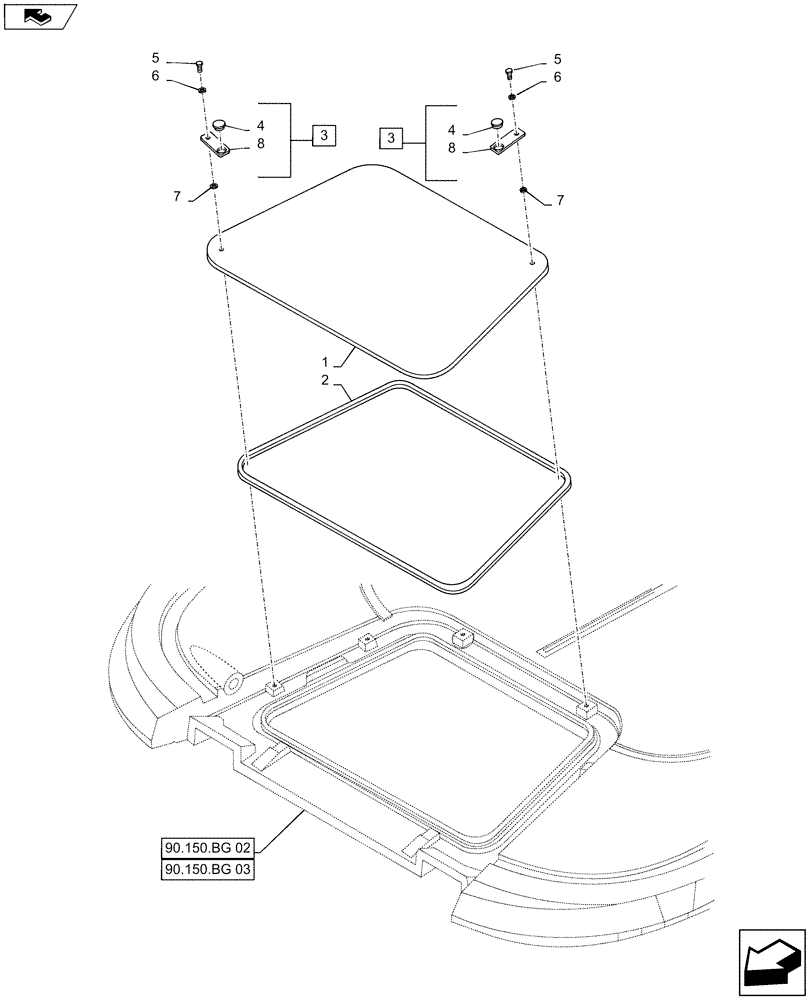

Запчасти Case IH MAXXUM 140 (90.156.AY) - VAR - 332285 - ROOF WITH LOW PROFILE - GLASS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84297668

GLASS

1шт.

2

87367799

SEAL,1910mm L

1шт.

3

87559265

RETAINER,6.35mm ID x 22.22mm OD x 8.33mm Thk

Incl 4, 8

8шт.

4

83905020

GROMMET,6.35mm ID x 22.22mm OD, Black

1шт.

5

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

8шт.

6

10516474

LOCK WASHER

8шт.

7

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

8шт.

8

NSS

NOT SOLD SEPARAT

Retainer, Incl in 3

1шт.
