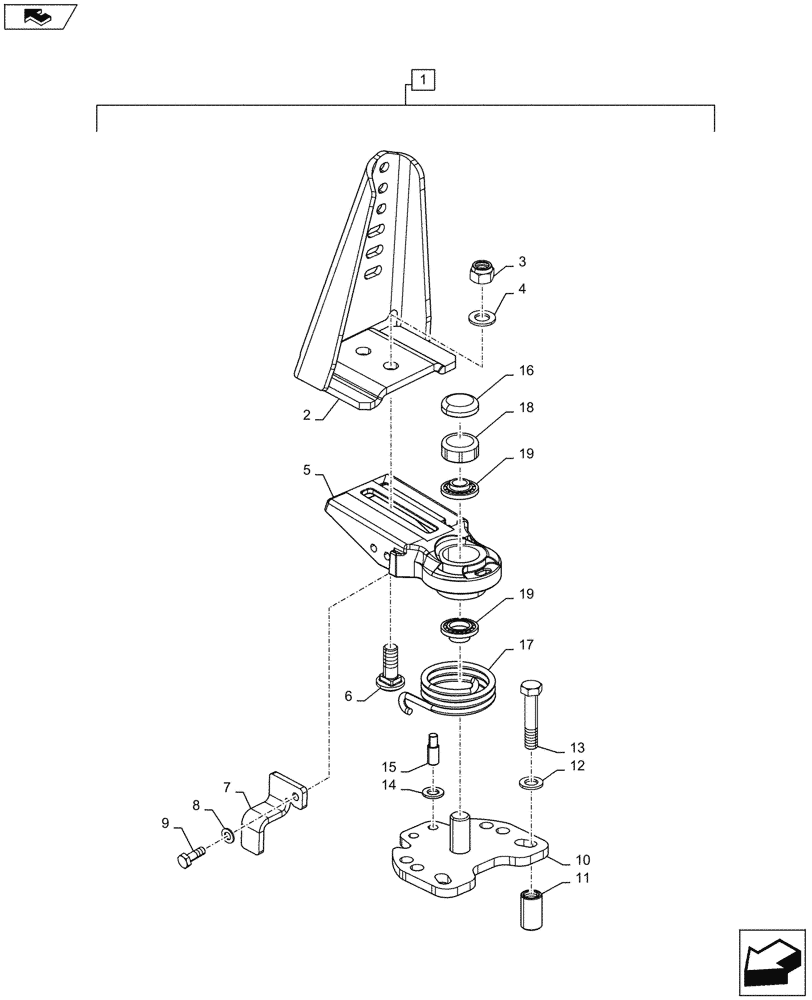

Запчасти Case IH MAXXUM 140 (90.116.BA[02]) - VAR - 333884, 334884, 335884 - DYNAMIC FRONT FENDERS - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87748075

HUB

RH, Incl 2 - 19

1шт.

1

87748076

HUB

LH, Incl 2 - 19

1шт.

2

87543523

SUPPORT

LH

1шт.

2

87543522

SUPPORT

RH

1шт.

3

47132634

NUT,M18, 1.5mm Pitch

1шт.

4

14489601

WASHER,19mm ID x 34mm OD x 3mm Thk

1шт.

5

87543516

HUB

1шт.

6

47132633

SCREW,M18 x 1.5, Cl 8.8

1шт.

7

87744048

LOCKING PLATE

RH

1шт.

7

87744049

BRACKET

LH

1шт.

8

11198579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.9mm Thk

1шт.

9

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

1шт.

10

87543520

BASE

1шт.

11

87543524

SPACER,45mm

4шт.

12

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

4шт.

13

11254121

BOLT,Hex, M16 x 80, 8.8

4шт.

14

11191079

BELLEVILLE WASHER,Belleville, 15mm ID x 27mm OD x 2.6mm Thk

1шт.

15

47132631

DOWEL,M14 x 1.5mm

1шт.

16

87543517

COVER,47mm OD

1шт.

17

84134750

SPRING,8mm OD

RH

1шт.

17

84134749

SPRING,8mm OD

LH

1шт.

18

47132629

LOCK NUT,M25 x 1.5 ZG

1шт.

19

44908419

TAPERED BEARING,25mm ID x 47mm OD x 15mm W

2шт.
