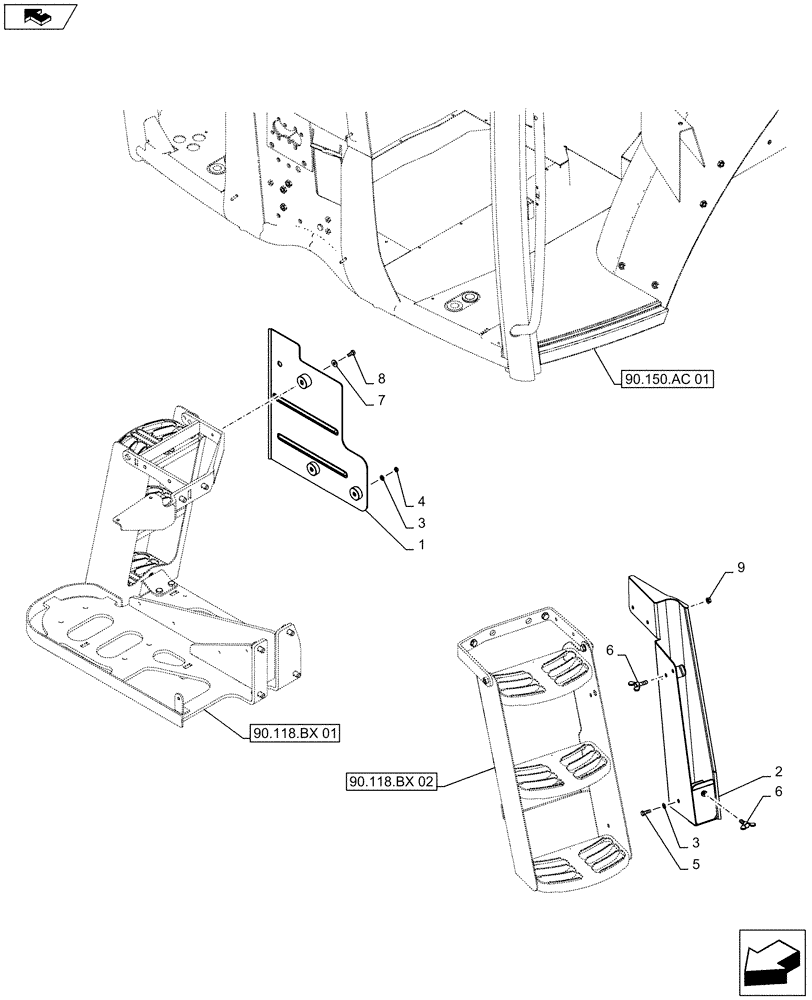

Запчасти Case IH MAXXUM 140 (90.116.AG[02]) - VAR - 338122, 743777, 338202 + STD - COVERS REAR FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84547297

GUARD

RH

1шт.

2

84478330

GUARD

LH

1шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

14047317

NUT,M8 x 1.25

2шт.

5

16043680

BOLT,Hex, M8 x 1.25 x 25mm, Full Thd

2шт.

6

84492240

SCREW,Wing, M10 x 30mm

Wing

2шт.

7

86639316

WASHER,8.4mm ID x 20mm OD x 2mm Thk

1шт.

8

16043480

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

1шт.

9

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.
