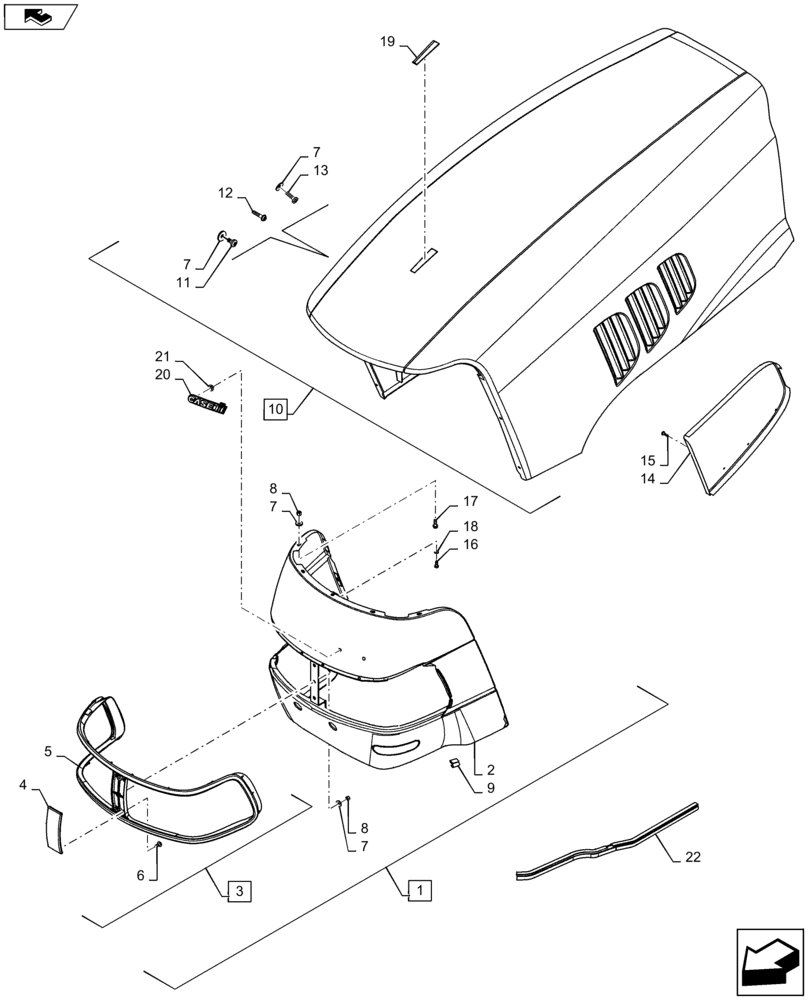

Запчасти Case IH MAXXUM 140 (90.100.AU) - VAR - 331515, 331520, 743729 + STD - ENGINE HOOD PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84291118

RADIATOR GRILLE

Incl 2, 3, 7 - 9

1шт.

2

84288793

RADIATOR GRILLE

1шт.

3

87734283

GRILLE

Incl 4 - 6

1шт.

4

87734282

RADIATOR GRILLE

1шт.

5

87633243

HOLDER

1шт.

6

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

4шт.

7

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

33шт.

8

12574211

NUT,M6 x 1, Cl 8

11шт.

9

87536288

CLIP

4шт.

10

84273833

ENGINE HOOD

Incl 7, 11 - 13, Maxxum 110, 120, 130

1шт.

10

84273838

ENGINE HOOD,Assembly, Upper

Incl 7, 11 - 13, Maxxum 115, 125, 140

1шт.

11

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

14шт.

12

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

14шт.

13

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

8шт.

14

87674133

SIEVE

LH

1шт.

14

87674132

SIEVE

RH

1шт.

15

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

12шт.

16

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

3шт.

17

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

8шт.

18

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

11шт.

19

44995044

GUIDE

1шт.

20

87716228

EMBLEM

1шт.

21

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

22

84135609

RUBBER STRIP

1шт.
