Запчасти Case IH MAXXUM 140 (88.100.90[17]) - DIA KIT - SPANISH DECAL KIT - NORTH AMERICA VERSION (88) - ACCESSORIES

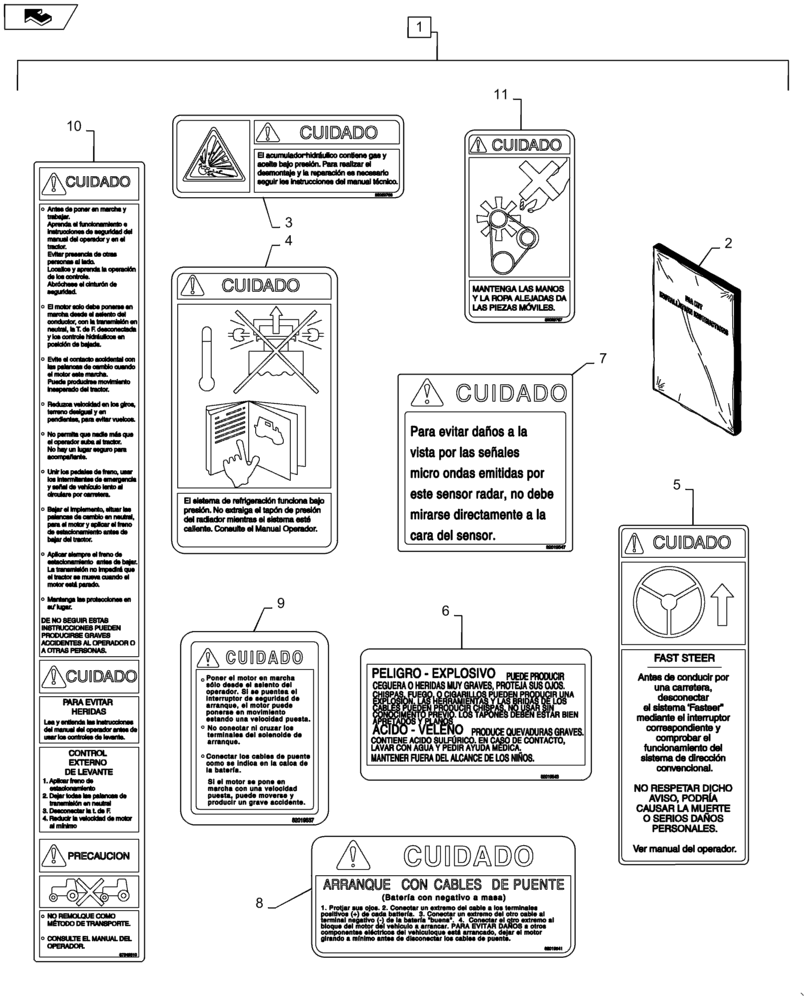

Схема запчастей Case IH MAXXUM 140 - (88.100.90[17]) - DIA KIT - SPANISH DECAL KIT - NORTH AMERICA VERSION (88) - ACCESSORIES
9
1
8
6
3
4
7
2
10
5
home
11

Артикул

Название

Примечание

Количество

1

710986024

DIA KIT, TRACTOR

Spanish Language Decal Kit for North America, Incl 2 - 11

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

Also Incl Parts on Figure 88.100.90 18

1шт.

2

82998552

LITER. SERV MISCELL

1шт.

3

82029766

DECAL

Hydraulic

4шт.

4

82029768

DECAL

Radiator Warning

2шт.

5

87331570

DECAL

Fast Steer

1шт.

6

82025615

DECAL

Battery Safety

1шт.

7

82025619

DECAL

Radar

1шт.

8

82025613

DECAL

Battery Instructions

1шт.

9

87311683

DECAL

Operating Instructions

1шт.

10

87345810

DECAL

Combined Warning

1шт.

11

82029767

DECAL

Fan Warning

2шт.

Выбрано товаров: 13
