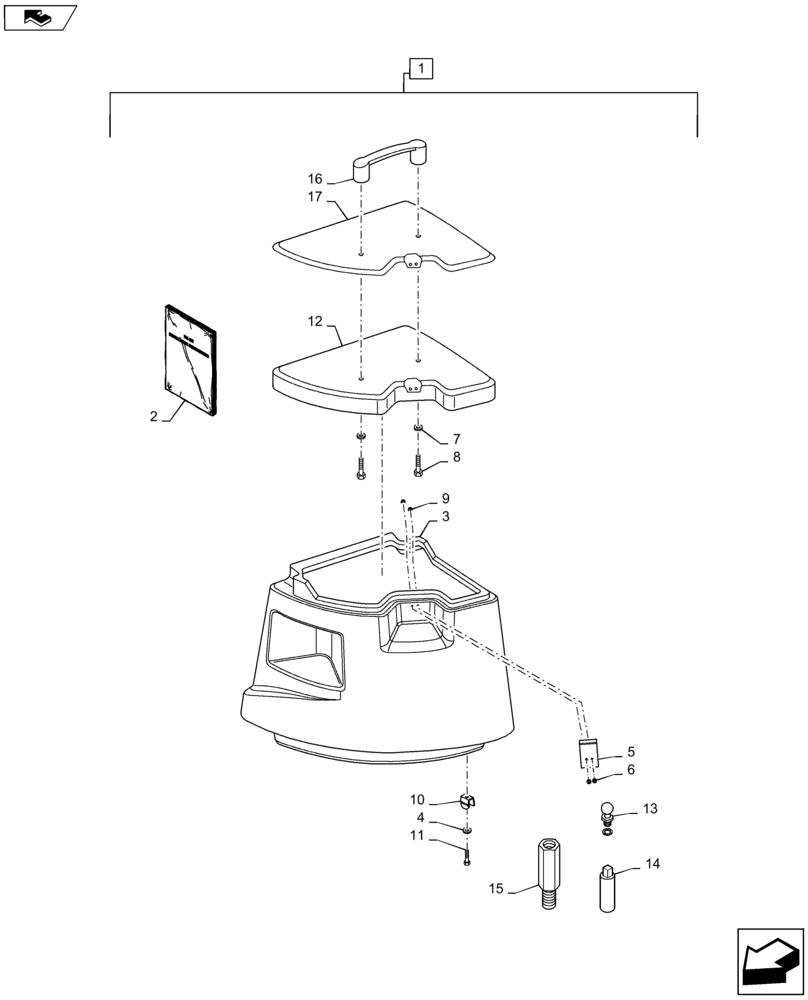

Запчасти Case IH MAXXUM 140 (88.100.90[13]) - DIA KIT - REAR CORNER STORAGE BOX (88) - ACCESSORIES

1

718577024

DIA KIT, TRACTOR

LH Rear Cab Storage Box, Incl 2 - 17

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84147284

INSTRUCTION

1шт.

3

82037021

BOXED PANEL

1шт.

4

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

5

82033918

LATCH

1шт.

6

13296111

SCREW,Phil Pan Hd, M3 x 10mm, Cl 5.8, Full Thd

4шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

5шт.

8

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

9

16101711

NUT,M3, Cl 8

4шт.

10

87703467

SPRING CLIP,21.3mm L

3шт.

11

82880809

SCREW,Pan, M4 x 8mm, Gr 4.8

3шт.

12

87704352

BOXED PANEL

Incl 3 - 11, 17

1шт.

13

87301896

BALL STUD,M8 x 1.25 x 34.5mm

3шт.

14

87671655

CAP

1шт.

15

82033873

SPACER,M8 x 1.25 x 33mm x 50.5mm, ZND

1шт.

15

82033874

SPACER,M8 x 1.25 x 26.5mm x 50.5mm, ZND

1шт.

16

82033904

HANDLE

1шт.

17

82037020

TOP COVER

1шт.
