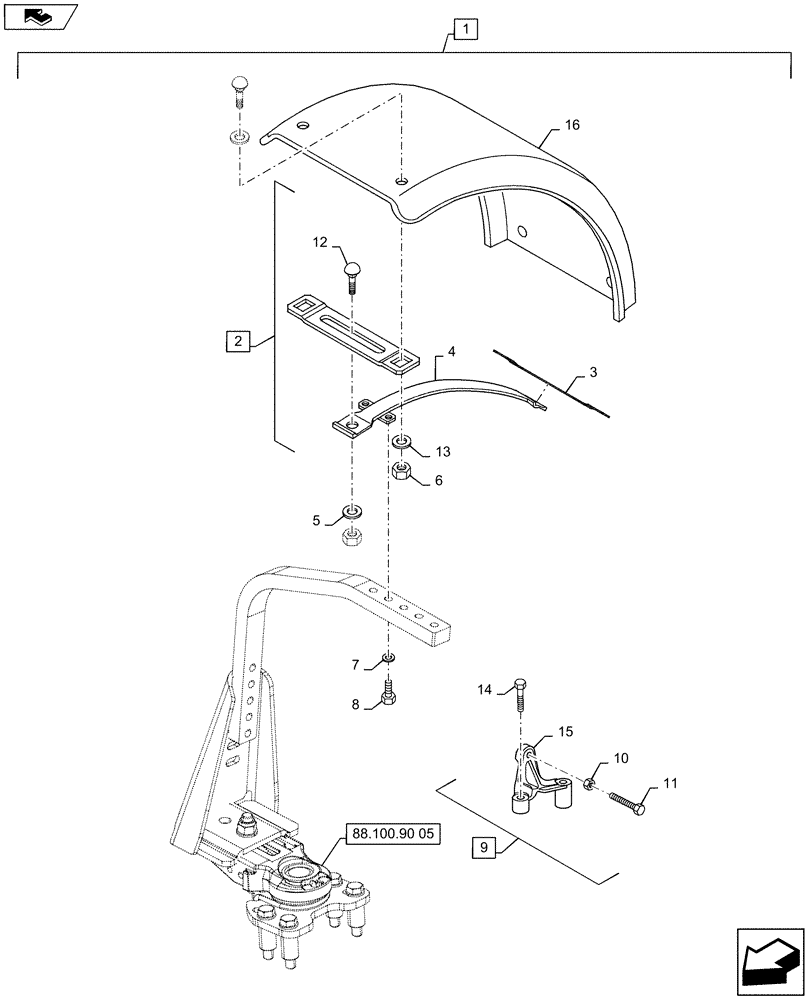

Запчасти Case IH MAXXUM 140 (88.100.90[06]) - DIA KIT - DYNAMIC FRONT FENDERS (540MM) - FENDERS AND BRACKETS (88) - ACCESSORIES

1

718775024

DIA KIT, TRACTOR

Front Fender 540mm Dynamic, Incl 2 - 16

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

Also Incl Parts on Figure 88.100.90 05

1шт.

2

87659018

SUPPORT

Incl 3, 4, 6, 12, 13

2шт.

3

82021040

SUPPORT

2шт.

4

87616362

BRACKET

, Serial Range: -

1шт.

5

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

10шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

2шт.

7

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

8

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

9

87475473

STOP

RH, Incl 10, 11, 15

1шт.

9

87475476

STOP

LH, Incl 10, 11, 15

1шт.

10

11701711

NUT,Hex, M10, Cl 8, ZND

10шт.

11

15215021

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

2шт.

12

13183201

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 4.8

10шт.

13

84145763

WASHER,14mm ID x 41.3mm OD x 2.64mm Thk

8шт.

14

15540921

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

4шт.

15

NSS

NOT SOLD SEPARAT

Stop, Incl in 9

1шт.

16

87616390

MUD DEFLECTOR,540mm W

2шт.
