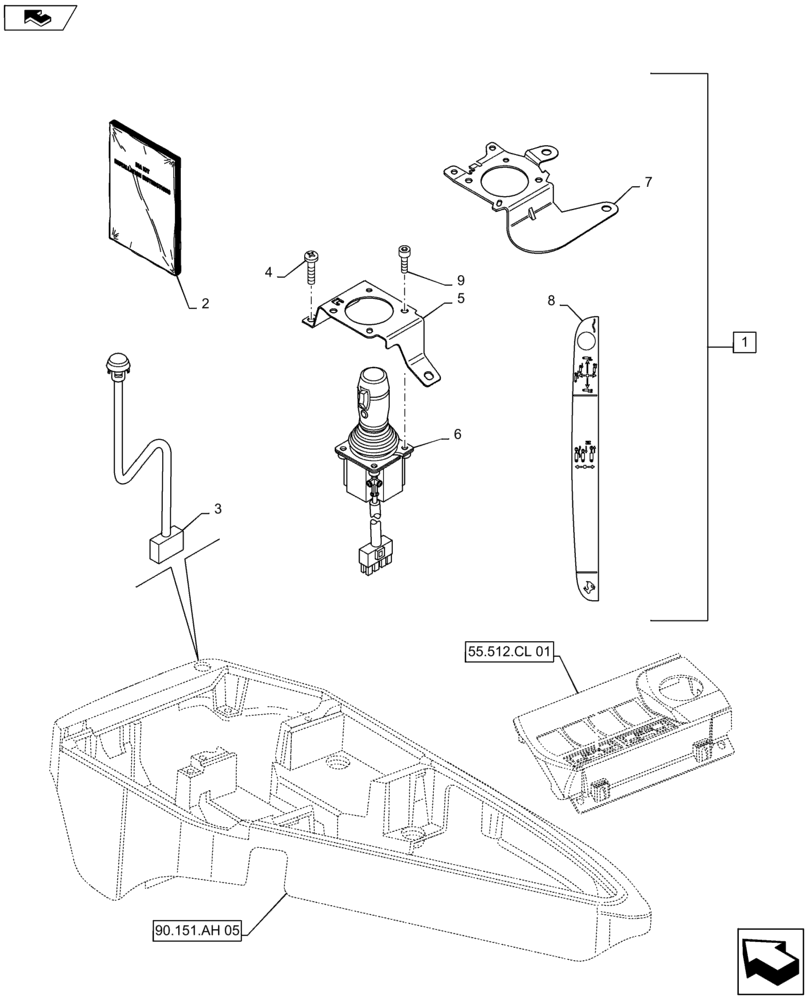

Запчасти Case IH MAXXUM 140 (88.100.55[12]) - DIA KIT - ELECTRONIC JOYSTICK WITH 3 BUTTONS FOR AUXILIARY SELECTION - JOYSTICK (88) - ACCESSORIES

1

719301024

DIA KIT, TRACTOR

Electronic Joystick with 2 Ancillary Buttons for 12v Supply to Diverter Valve, Incl 2 - 9

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84213411

INSTRUCTION

1шт.

3

87485775

SWITCH ASSY

Joystick Float

1шт.

4

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

5

84202338

BRACKET

1шт.

6

84208739

JOYSTICK

1шт.

7

84150720

HOLDER

1шт.

8

84126448

DECAL

1шт.

9

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.
