Запчасти Case IH MAXXUM 140 (88.100.35[19]) - DIA KIT - ADDITIONAL ELECTROHYDRAULIC REMOTE SLICE (3 TO 4) (88) - ACCESSORIES

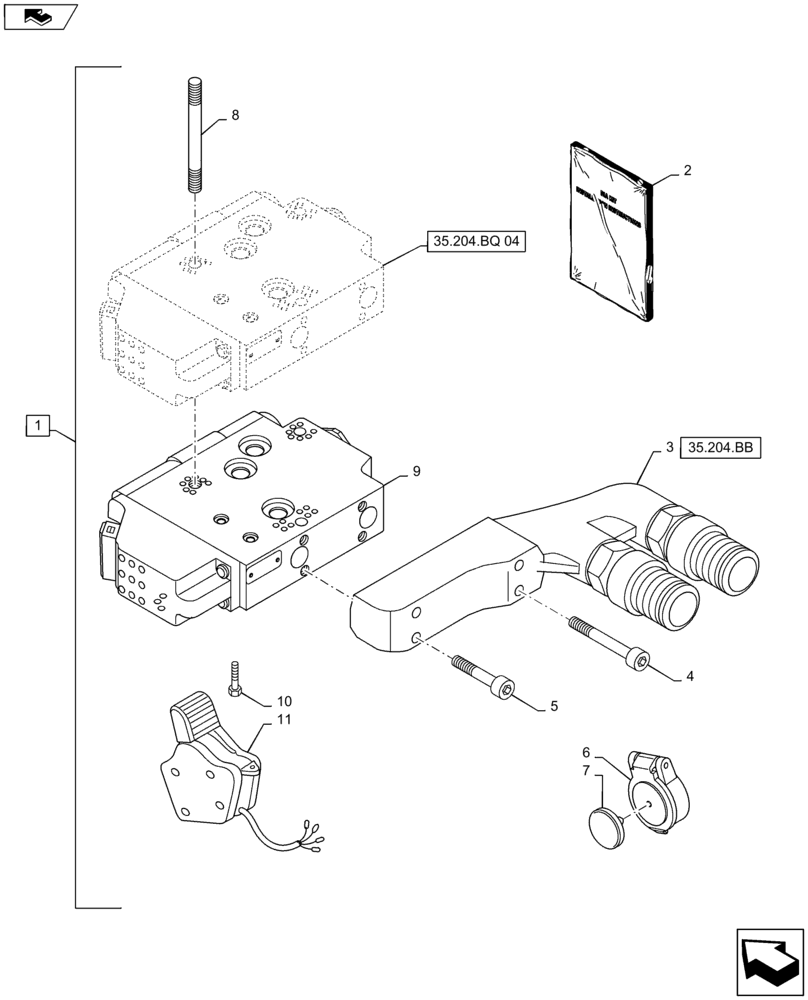

Схема запчастей Case IH MAXXUM 140 - (88.100.35[19]) - DIA KIT - ADDITIONAL ELECTROHYDRAULIC REMOTE SLICE (3 TO 4) (88) - ACCESSORIES
8
3
1
2
5
10
4
6
home
9
11
35.204.bq 04
35.204.bb
7

Артикул

Название

Примечание

Количество

1

719411134

DIA KIT, TRACTOR

EHR Slice 3 to 4, Incl 2 - 11

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84277710

INSTRUCTION

1шт.

3

87381965

QUICK MALE COUPLING

1шт.

4

14305671

SCREW,M6 x 35mm, Cl 12.9

2шт.

5

14306071

SCREW,M6 x 50mm, Cl 12.9

2шт.

6

82037721

DUST CAP

2шт.

7

82029895

DISC,20mm D, Black

2шт.

8

47129473

THREADED TIE-ROD

3шт.

9

84230181

HYD VALVE SECTION

1шт.

10

50631

SCREW,Self Tapping, M6 x 0.5" OAL

1шт.

11

87486098

ROCKER SWITCH

1шт.

Выбрано товаров: 12
