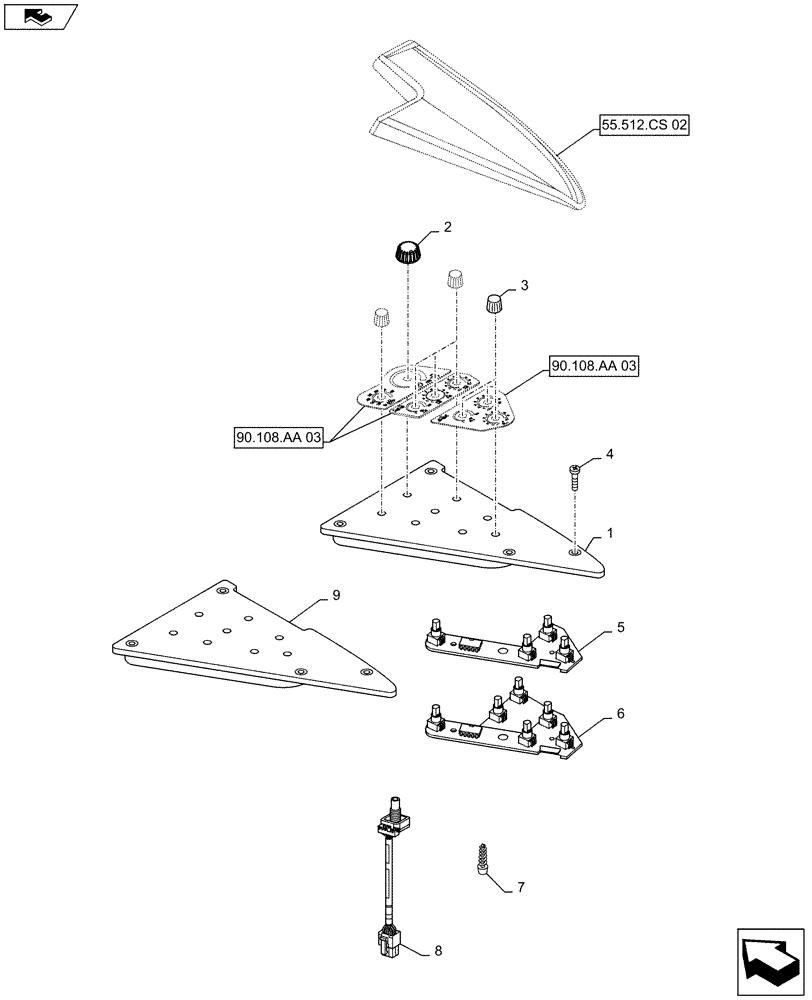

Запчасти Case IH MAXXUM 140 (55.512.CS[09]) - VAR - 332023, 332024 + STD* - COMMAND ARM WITH SLIP CONTROL (RADAR) - CONTROLS (55) - ELECTRICAL SYSTEMS

1

84168654

ELECTRIC PANEL

Valid with Std Equipment or VAR 332023, Command Arm for EHRs w/ Slip Control (Radar)

1шт.

Contains Ref. 3, 5, 7 and Decals p.n. 84217909, 84217912 Shown in Figure 90.108.AA 03

1шт.

1

84168658

ELECTRIC PANEL

Valid with Std Equipment or VAR 332024, Command Arm for EHRs for Front Hitch Management w/ Slip Control (Radar), Serial Range: -C7202

1шт.

Contains Ref. 3, 6, 7 and Decals p.n. 84217908, 84217912, 84217909 Shown in Figure 90.108.AA 03

1шт.

2

87454709

KNOB

1шт.

3

82012988

KNOB

Qty of 4 with VAR 332023, Qty of 7 with VAR 332024

1шт.

4

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4шт.

5

84175363

PRINTED CIRCUIT BOAR

Valid with Std Equipment or VAR 332023, Command Arm for EHRs w/ Slip Control (Radar)

1шт.

6

84175364

PRINTED CIRCUIT BOAR

Valid with Std Equipment or VAR 332024, Command Arm for EHRs for Front Hitch Management w/ Slip Control (Radar)

1шт.

7

82018700

SCREW,Phillips Drive, Round HD, M2.5 x 10mm

Qty of 3 with VAR 332023, Qty of 4 with VAR 332024

1шт.

8

87755846

POTENTIOMETER,5V, 30mA, 150mW

1шт.

9

84394113

ELECTRIC PANEL

, Start Serial: D7202

1шт.

Contains Ref. 3, 6, 7 and Decals p.n. 84217908, 84217912, 84217909 Shown in Figure 90.108.AA 03

1шт.
