(55.512.CL[04]) - VAR - 339782, 743688 - ELECTRONIC JOYSTICK WITH PROPORTIONAL SIMULTANEOUS CONTROL OF 3RD VALVE - JOYSTICK

Запчасти Case IH MAXXUM 140 (55.512.CL[04]) - VAR - 339782, 743688 - ELECTRONIC JOYSTICK WITH PROPORTIONAL SIMULTANEOUS CONTROL OF 3RD VALVE - JOYSTICK (55) - ELECTRICAL SYSTEMS

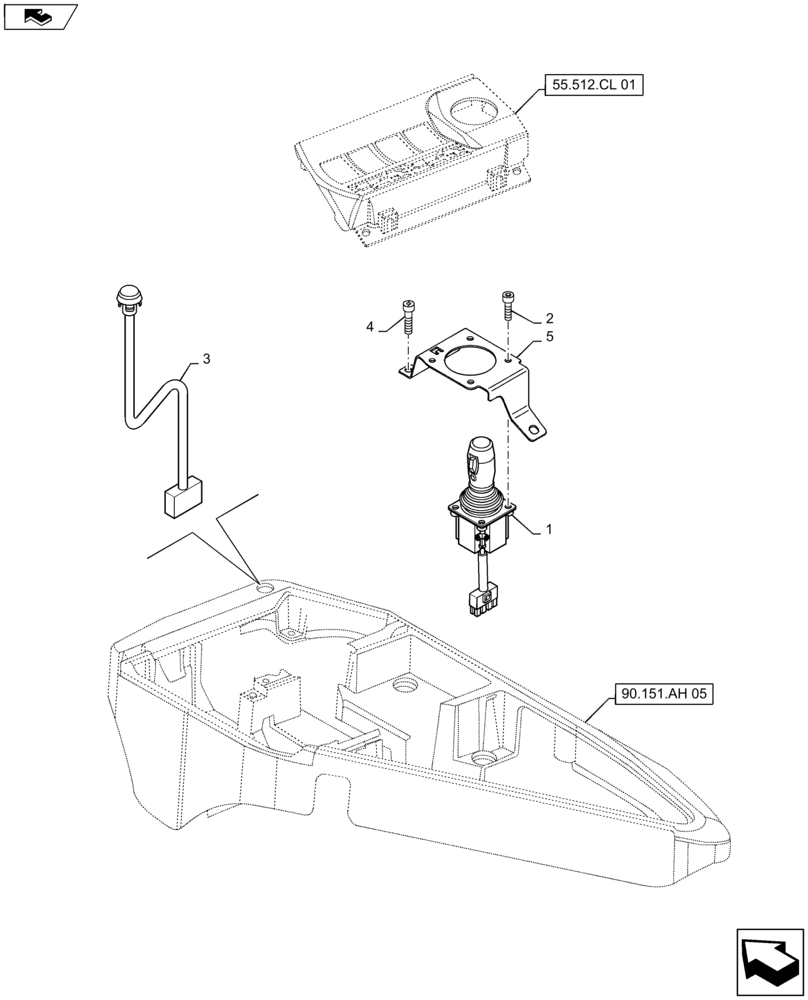

Схема запчастей Case IH MAXXUM 140 - (55.512.CL[04]) - VAR - 339782, 743688 - ELECTRONIC JOYSTICK WITH PROPORTIONAL SIMULTANEOUS CONTROL OF 3RD VALVE - JOYSTICK (55) - ELECTRICAL SYSTEMS
1
90.151.ah 05
home
55.512.cl 01
3
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84208738

JOYSTICK

Auxiliary Selection

1шт.

2

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

3

87485775

SWITCH ASSY

Auxiliary Selection

1шт.

4

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

5

84202338

BRACKET

1шт.
