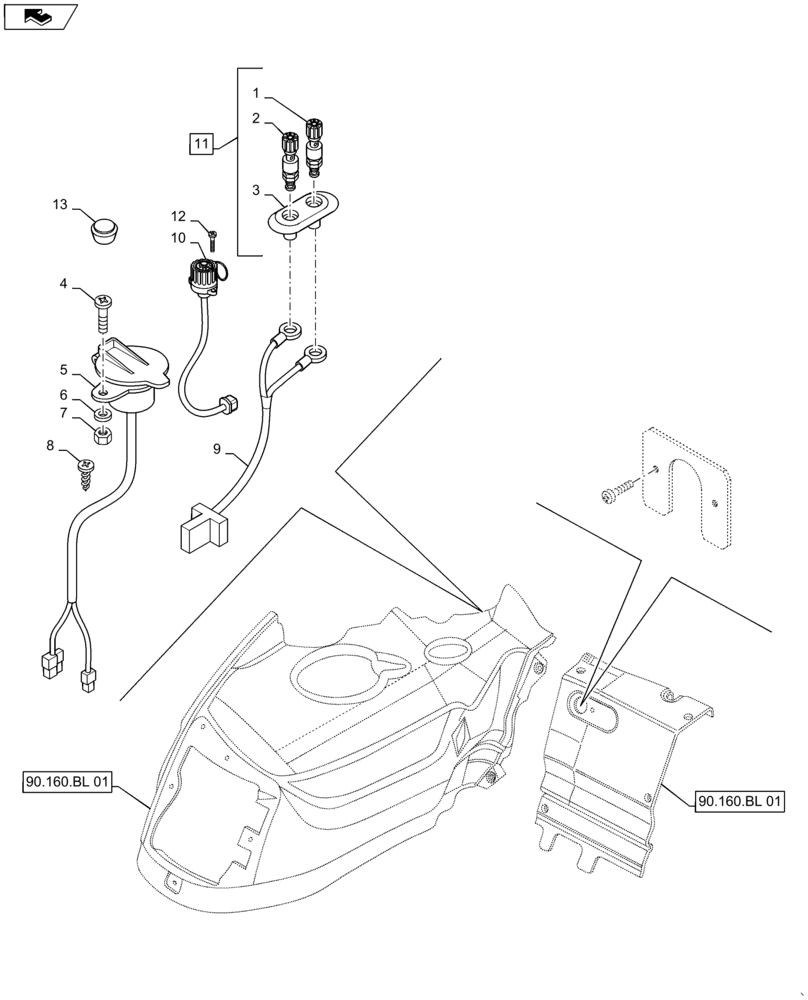

Запчасти Case IH MAXXUM 140 (55.510.BM[02]) - VAR - 331619, 330866, 336007 + STD - AUXILIARY POWER SOCKETS AND CAPS (55) - ELECTRICAL SYSTEMS

1

82003171

TERMINAL CONNECTOR

Red, Std Equipment or VAR 331619

1шт.

2

82003172

TERMINAL CONNECTOR

Black, Std Equipment or VAR 331619

1шт.

3

82003173

BEZEL

Std Equipment or VAR 331619

1шт.

4

13272617

SCREW,Pozidriv Pan Hd, M4 x 25mm, Cl 5.8

Std Equipment or Var 336007

2шт.

5

84416690

WIRE HARNESS

Implement Socket, 2 Connector, Std Equipment or Var 336007

2шт.

6

14496201

WASHER,M4 x 9

Std Equipment or Var 336007

2шт.

7

10794011

NUT,M4, Cl 8

Std Equipment or Var 336007

2шт.

8

15650101

SCREW,M3.9 x 13mm

Std Equipment or Var 336007

2шт.

9

82035388

WIRE HARNESS

Std Equipment

1шт.

10

87345189

WIRE HARNESS

Std Equipment or VAR 330866

1шт.

11

84266120

SOCKET,12V

Incl 1 - 3, Std Equipment or VAR 331619

1шт.

12

83912337

SELF-TAP SCREW,3.5mm OD x 1.3mm Thd x 22mm L

Std Equipment or VAR 330866

2шт.

13

87351624

BLANK-OFF PLUG

Std Equipment or VAR 331619

2шт.
