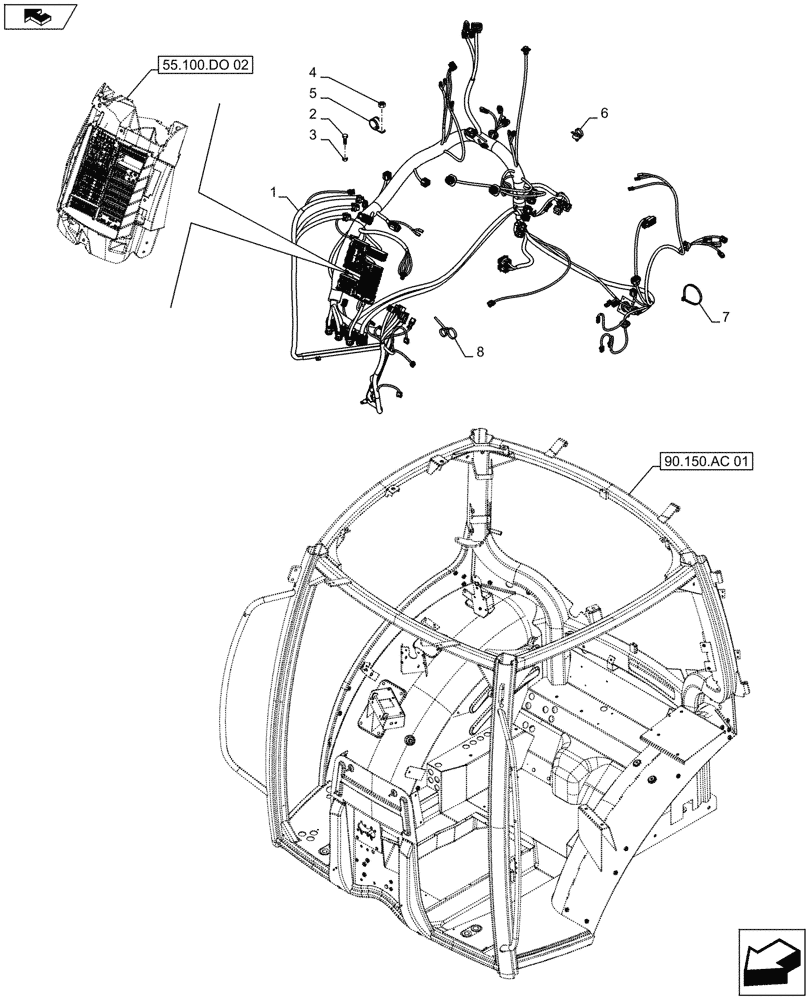

Запчасти Case IH MAXXUM 140 (55.510.AF) - VAR - 331145, 331146 + STD - CAB HARNESS (55) - ELECTRICAL SYSTEMS

1

84358492

WIRE HARNESS

ASSY, Cab, Serial Range: -C7106

1шт.

See also Figure 55.100.DO (02), 55.100.DO (03), 55.100.DO (04), 55.100.DO (05), 55.100.DO (06)

1шт.

1

47358680

WIRE HARNESS

ASSY, Cab, Start Serial: D7106

1шт.

See also Figure 55.100.DO (02), 55.100.DO (03A), 55.100.DO (04A), 55.100.DO (05A), 55.100.DO (06)

1шт.

2

10978021

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

2шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

2шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

4

83958007

NUT,M8, G8

1шт.

5

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

1шт.

5

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

6

82033028

CABLE TIE,170mm L

2шт.

7

82001040

CABLE TIE,.19" x 11.5"

2шт.

7

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.

8

82013031

CABLE TIE,193mm L

3шт.
