Запчасти Case IH MAXXUM 140 (55.302.AV) - VAR - 330798 + STD - BATTERY CABLES (55) - ELECTRICAL SYSTEMS

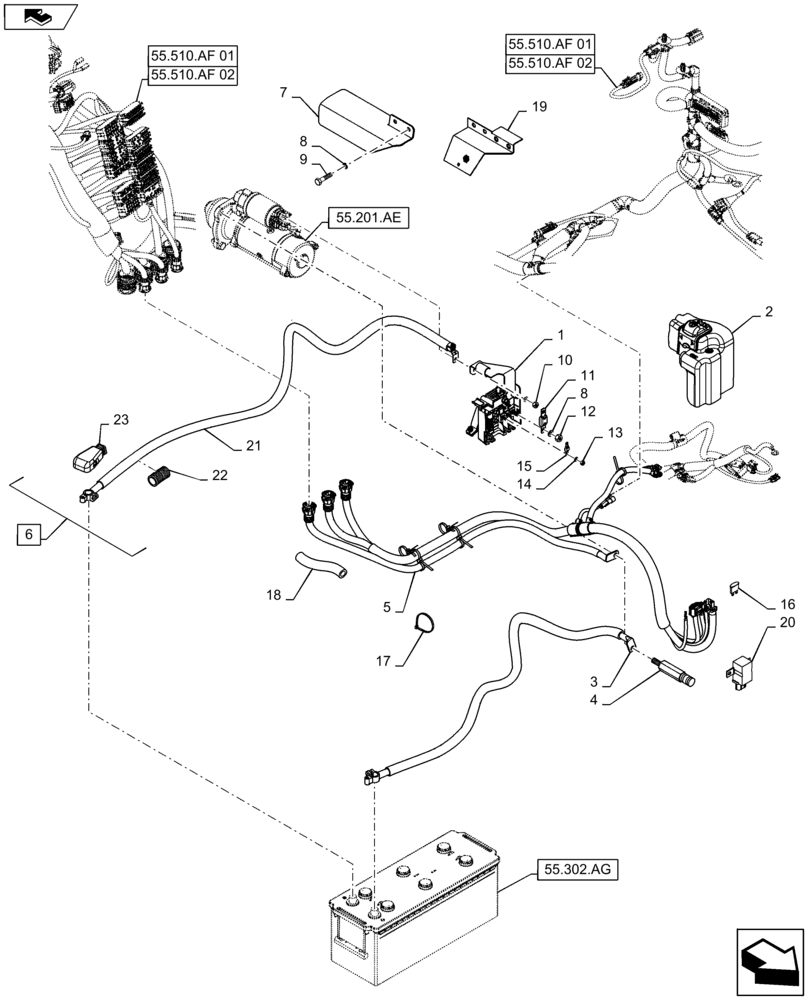

Схема запчастей Case IH MAXXUM 140 - (55.302.AV) - VAR - 330798 + STD - BATTERY CABLES (55) - ELECTRICAL SYSTEMS
8
12
19
55.510.af 01
55.510.af 02
14
9
8
10
13
7
16
55.302.ag
home
15
11
17
20
55.510.af 02
23
18
3
22
2
55.201.ae
55.510.af 01
4
6
1
5
21

Артикул

Название

Примечание

Количество

1

84396491

FUSE BOX

1шт.

2

84255327

COVER

1шт.

3

87487740

NEG BATTERY CABLE,1250mm L

Battery to Ground

1шт.

4

82028966

TERMINAL CONNECTOR,M10 x 1.5, CL 8.8

1шт.

5

84468644

WIRE HARNESS

Power Box to Cab Supply

1шт.

6

87724835

WIRE HARNESS

Battery Positive to Starter Motor, Incl 21 - 23

1шт.

7

84282733

SHIELD

1шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

11

82033972

FUSE,250A

1шт.

12

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

13

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

14

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

15

87390344

FUSE,30A, MIDIVAL

1шт.

16

10401290

FUSE,25 amp Mini

1шт.

17

83933061

STRAP

3шт.

18

84178749

PROTECTIVE SLEEVE

1шт.

19

84283034

SHIELD

Only with Battery Isolator, Var 330798

1шт.

20

87392809

RELAY,High Current, 12V, 190A

Battery Disconnect Switch, Only with Battery Isolator, Var 330798

1шт.

21

NSS

NOT SOLD SEPARAT

Cable, Incl in 6

1шт.

22

82918747

SHIELD

1шт.

23

81867524

PROTECTION CAP

1шт.

Выбрано товаров: 23
