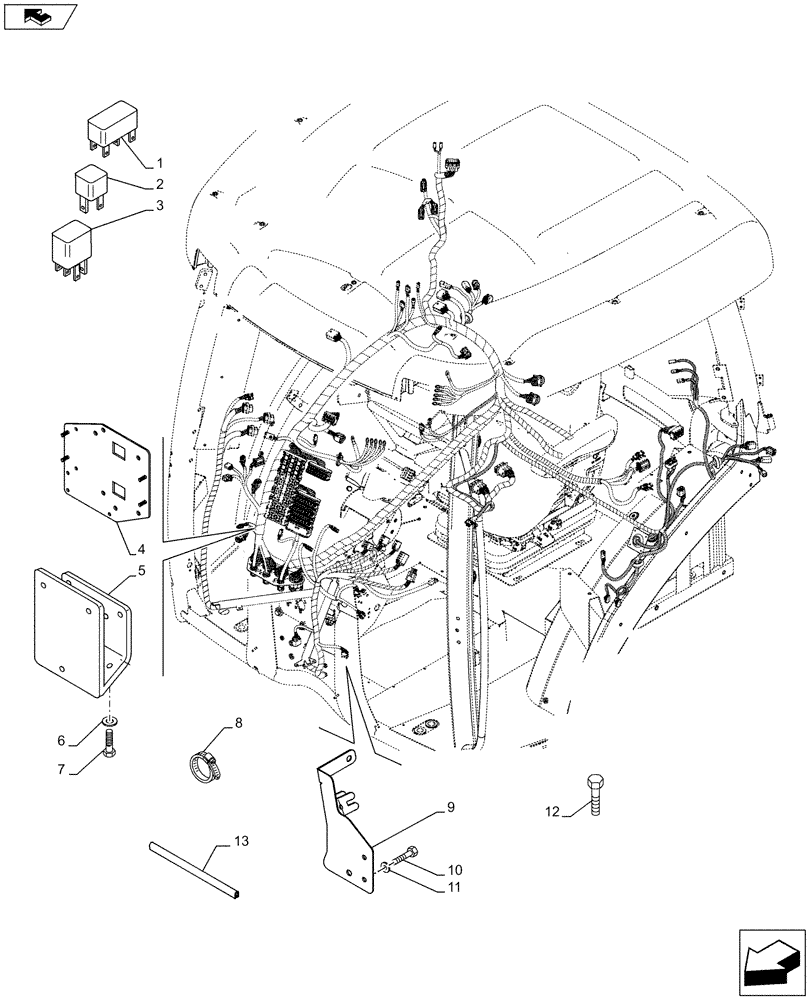

Запчасти Case IH MAXXUM 140 (55.100.DO[01]) - VAR - 331619 + STD - CAB CABLE - RELAYS (55) - ELECTRICAL SYSTEMS

1

87304226

RELAY,12V, Combined, Black

Wiper Timer

1шт.

2

82030798

RELAY,12V, 70A

30A

1шт.

2

82013124

RELAY,12V, 30A

70A

1шт.

2

87691156

RELAY

Battery Isolator

1шт.

3

82023238

RELAY,12V, 20A

15/25A

1шт.

4

87325625

SUPPORT

Only with Std Equipment

1шт.

5

87314581

BRACKET

1шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

7

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

8

14560287

CABLE TIE,207.00mm L

3шт.

9

87597230

SUPPORT

1шт.

10

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

11

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

12

83929012

CAPTIVE WASHER SCREW,HWH, M6.3 x 1.8 x 20mm

2шт.

13

87617359

PROTECTOR

, Serial Range: -C7166

1шт.

13

84545777

PROTECTION STRIP

, Start Serial: D7166

2шт.
