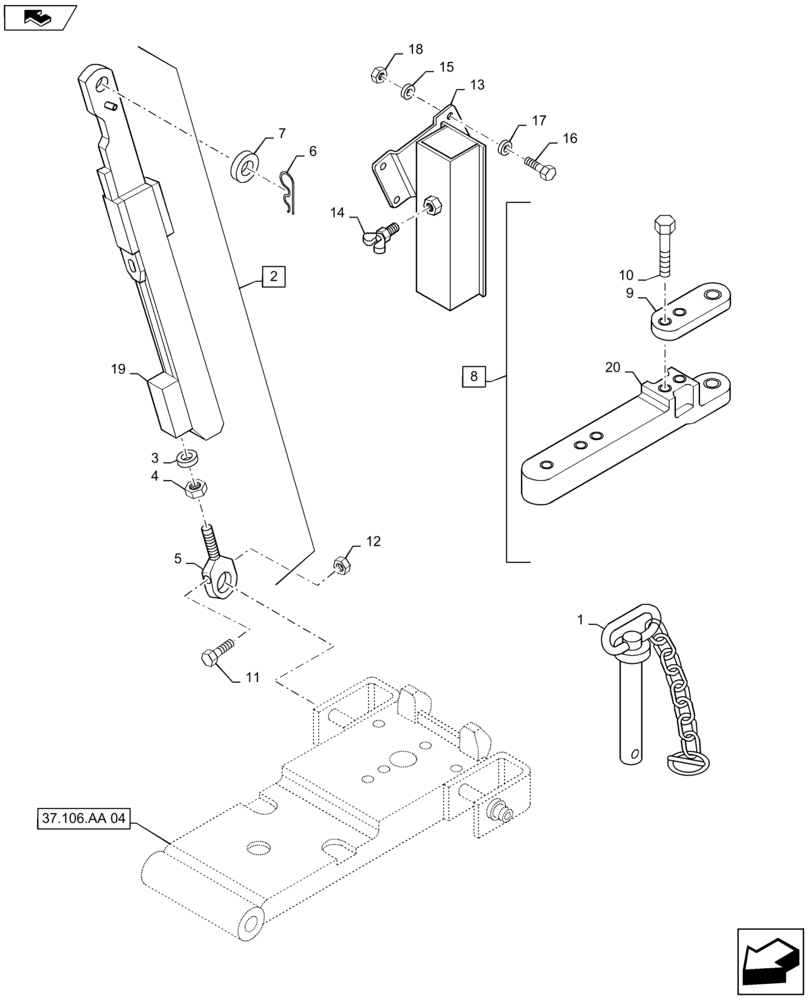

Запчасти Case IH MAXXUM 140 (37.106.AA[05]) - VAR - 331943 - AUTOMATIC PICK UP HITCH WITH SWINGING DRAWBAR -TIE ROD (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

82025933

PIN,32mm OD x 180mm L

w/Chain

1шт.

2

82023671

TIE-ROD

Incl 3 - 5, 19

2шт.

3

10517374

LOCK WASHER,18.2mm ID x 30.6mm OD x 4mm Thk

1шт.

4

11703214

NUT

1шт.

5

82027964

CLEVIS,M18 x 2.5

1шт.

6

10797801

COTTER PIN,M6.3 x 50.00mm

2шт.

7

14497101

WASHER,M20 x 37 x 3

2шт.

8

82038150

DRAWBAR

Incl 9, 10, 20

1шт.

9

82026937

SUPPORT

1шт.

10

81873273

BOLT,Hex, M20 x 2.5 x 70mm

2шт.

11

82880927

BOLT,Hex, M6 x 1 x 60mm, Gr 8.8

2шт.

12

81851140

NUT,M6 x 1, Cl 8

2шт.

13

87610372

BRACKET

1шт.

14

82039554

WING NUT,Screw, M10 x 20.00mm, STL, ZND

1шт.

15

83937016

LOCK WASHER,Serr, M8

4шт.

16

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

17

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

18

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

19

NSS

NOT SOLD SEPARAT

Tie Rod, Incl in 2

1шт.

20

NSS

NOT SOLD SEPARAT

Drawbar, Incl in 8

1шт.
