(35.204.BS[01]) - VAR - 330560, 333560, 743689 - 2 ELECTRONIC MID MOUNTED VALVES -DISTRIBUTOR AND SUPPORT

Запчасти Case IH MAXXUM 140 (35.204.BS[01]) - VAR - 330560, 333560, 743689 - 2 ELECTRONIC MID MOUNTED VALVES -DISTRIBUTOR AND SUPPORT (35) - HYDRAULIC SYSTEMS

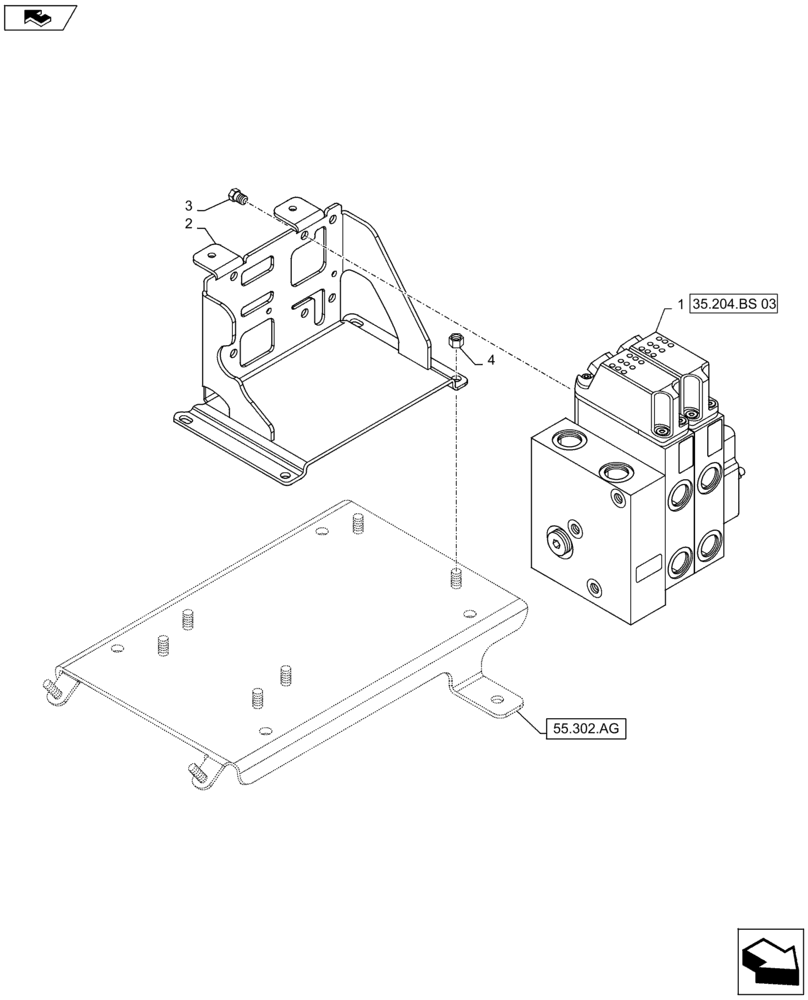

Схема запчастей Case IH MAXXUM 140 - (35.204.BS[01]) - VAR - 330560, 333560, 743689 - 2 ELECTRONIC MID MOUNTED VALVES -DISTRIBUTOR AND SUPPORT (35) - HYDRAULIC SYSTEMS
55.302.ag
35.204.bs 03
3
2
home
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84322506

CONTROL VALVE

1шт.

2

84479136

SUPPORT

1шт.

3

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.
