(35.204.BQ[02]) - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES WITH PUMP 113 L/MIN CCLS - DISTRIBUTOR - BREAKDOWN

Запчасти Case IH MAXXUM 140 (35.204.BQ[02]) - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES WITH PUMP 113 L/MIN CCLS - DISTRIBUTOR - BREAKDOWN (35) - HYDRAULIC SYSTEMS

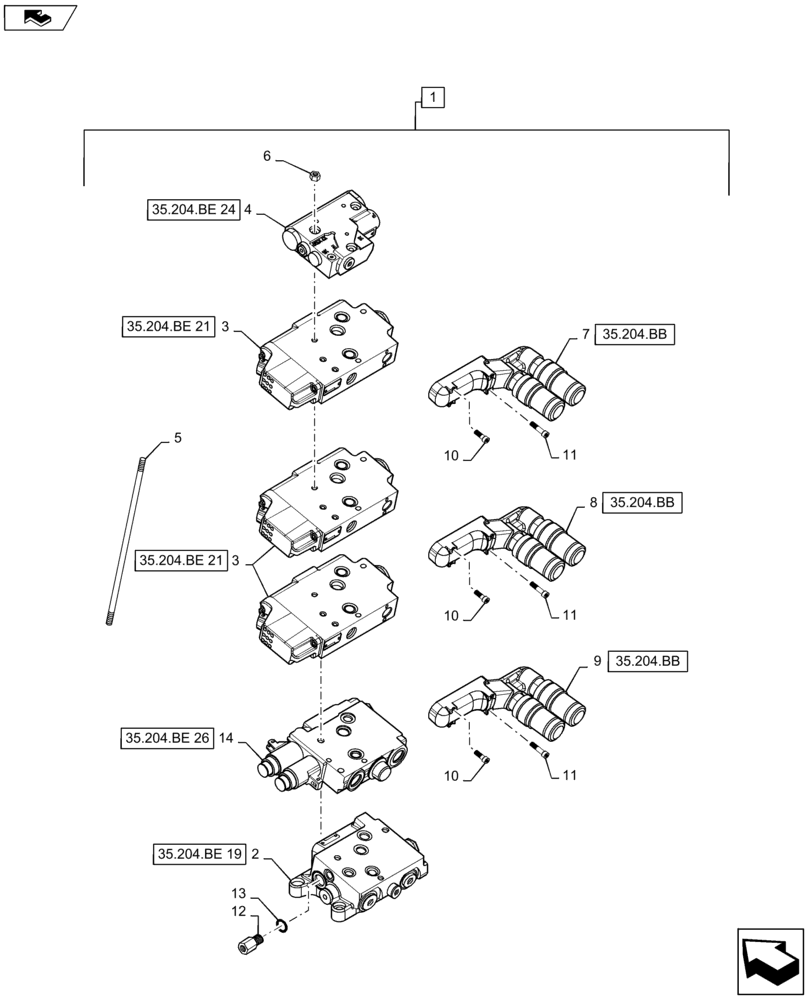

Схема запчастей Case IH MAXXUM 140 - (35.204.BQ[02]) - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES WITH PUMP 113 L/MIN CCLS - DISTRIBUTOR - BREAKDOWN (35) - HYDRAULIC SYSTEMS
35.204.be 19
7
12
35.204.be 21
9
11
11
5
35.204.bb
35.204.bb
10
3
35.204.bb
10
6
35.204.be 21
1
10
home
35.204.be 26
13
8
11
14
3
2
4
35.204.be 24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84266154

CONTROL VALVE

Incl 2 - 14

1шт.

2

87730706

CONTROL VALVE

1шт.

3

84230181

HYD VALVE SECTION

3шт.

4

84230200

HYD VALVE SECTION

1шт.

5

47131731

TIE-ROD,235mm L

3шт.

6

5195169

NUT,M8

3шт.

7

87381964

QUICK MALE COUPLING

1шт.

8

87381963

QUICK MALE COUPLING

1шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

12

5191704

CHECK VALVE

1шт.

13

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

14

84175671

VALVE SECTION

1шт.
