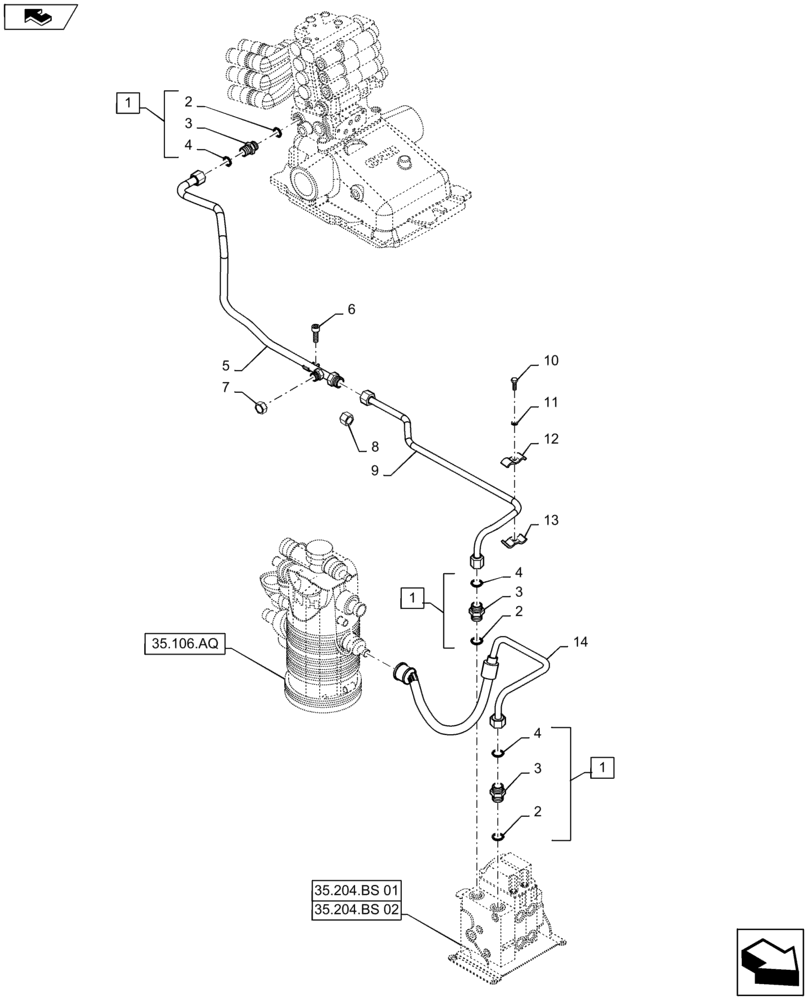

Запчасти Case IH MAXXUM 140 (35.204.BJ[03]) - VAR - 330560, 333560, 743689, 330561, 333561, 743690 - ELECTRONIC MID MOUNTED VALVES - DELIVERY AND DISCHARGE PIPES (35) - HYDRAULIC SYSTEMS

1

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 2 - 4

3шт.

2

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

3

NSS

NOT SOLD SEPARAT

3шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

5

84428858

HYD TUBE

Supply to Axle Suspension Valve and Mid Mount Valves

1шт.

6

14420521

HEX SOC SCREW,M10 x 45mm, Cl 8.8, Full Thd

1шт.

7

47123020

PLUG,Hex

1шт.

8

83987627

CAP,1-14UN-2A

1шт.

9

84467221

HYD TUBE

Supply to Mid Mount Valve

1шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

11

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

12

5180153

BRACKET

1шт.

13

5180016

BRACKET

1шт.

14

84580379

FLEXIBLE HOSE

Discharge

1шт.
